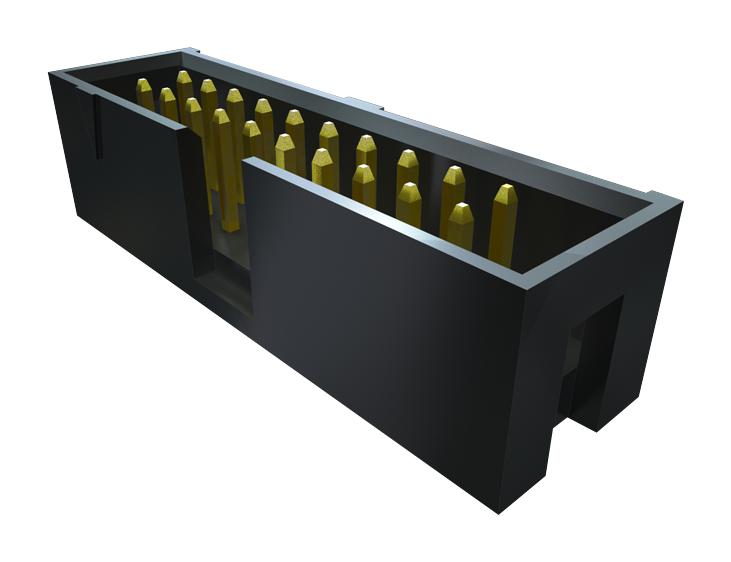

SAMTEC TST12004SDRA Shrouded Board-to-Board Connector
Shrouded board-to-board connectors designed for reliable electrical connections in dense electronic assemblies. These connectors feature a compact profile with a 0.025-inch spacing, gold or tin plating over phosphor bronze contacts, and are RoHS compliant. Suitable for wave, SMT, and high-temperature applications with operating temperatures from -55°C to +125°C. They include polarized, locking, and alignment options, supporting multiple pin counts up to 36 positions. Engineered for durability and ease of installation in industrial equipment, automation systems, and control modules, ensuring secure, reliable connections.
SAMTEC TST12004SDRA Shrouded Board-to-Board Connector Specifications:
- Insulator Material: Filled Polyester
- Insulation Resistance: Not specified on original - externally 1000 VRMS withstand voltage
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Current Rating: 2A (per contact)
- Operating Temp Range: -55°C to +125°C (with Gold), -55°C to +105°C (with Tin)
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Size Range: 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36 pins
- Contact Material: Phosphor Bronze
- Physical Dimensions: Length varies per model, typical insertion length 4.0 mm to 13.0 mm
- Connector Series: TST, ZST, HTST
- Mounting Style: Through-hole, SMT options available
- Additional features: Polarized, Locking Leads, Alignment Pins
Buy the Samtec Series ZST Board-to-Board Connectors: TST12004SDRA
Purchase the Samtec TST12004SDRA shrouded board-to-board connector online today. Designed for reliable, secure electrical connections in dense electronic assemblies, it features a 0.025-inch pitch, gold or tin plating, and RoHS compliance. Suitable for industrial equipment, automation, and control systems, supporting multiple pin counts up to 36. This connector offers polarized locking, high-temperature operation up to 125°C, and a robust construction ensuring durability and ease of installation in demanding environments.
Get Samtec TST12004SDRA today—built for precision, high-density connectivity, and long-lasting durability.
