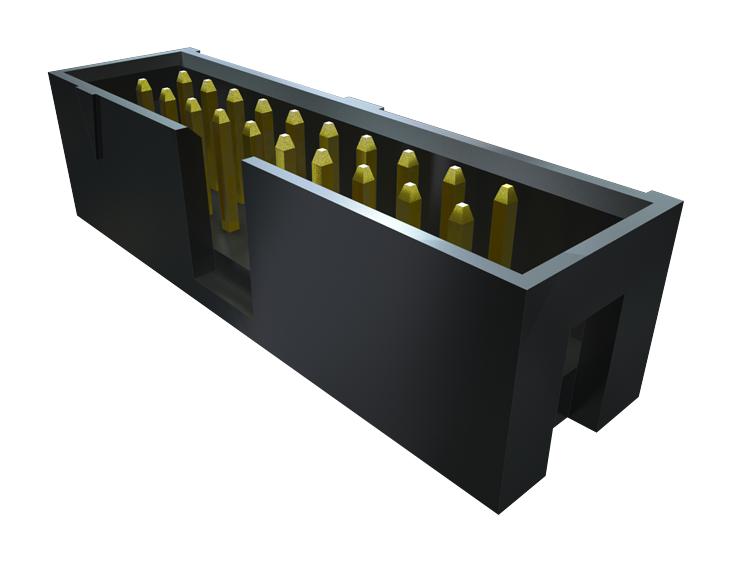

SAMTEC TST12503GDLL Shrouded IDC Header
Shrouded .025 inch square post IDC headers are engineered for reliable board-to-wire connections, featuring gold or tin plating, insulation resistance, and high-temperature capability. Constructed with phosphor bronze terminals and filled polyester insulators, these connectors support multiple pin configurations and are RoHS compliant. They are suitable for high-performance applications requiring secure, durable, and corrosion-resistant connections. Available in standard sizes, they include polarized locking leads and optional mechanical stability enhancements, making them ideal for industrial, automation, and electronic device connections requiring precision and reliability.
SAMTEC TST12503GDLL Shrouded IDC Header Specifications:
- Insulator Material: Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (50 y" / 1.27 um), optional gold plated connections
- Current Rating: 2 fA
- Operating Temp Range: -55 °C to +125 °C with Gold, -55 °C to +105 °C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pin sizes: 05, 07, 08, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Physical Dimensions: Length varies with configuration; typical insulator thickness approximately 0.025 inches; body width around 0.38 inches
- Mechanical Features: Polarized, locking leads, optional mechanical connectors, compatible with SMT and through-hole applications
- Series: TST, HTST, ZST
- Optional alignment pins and mechanical stability features available
