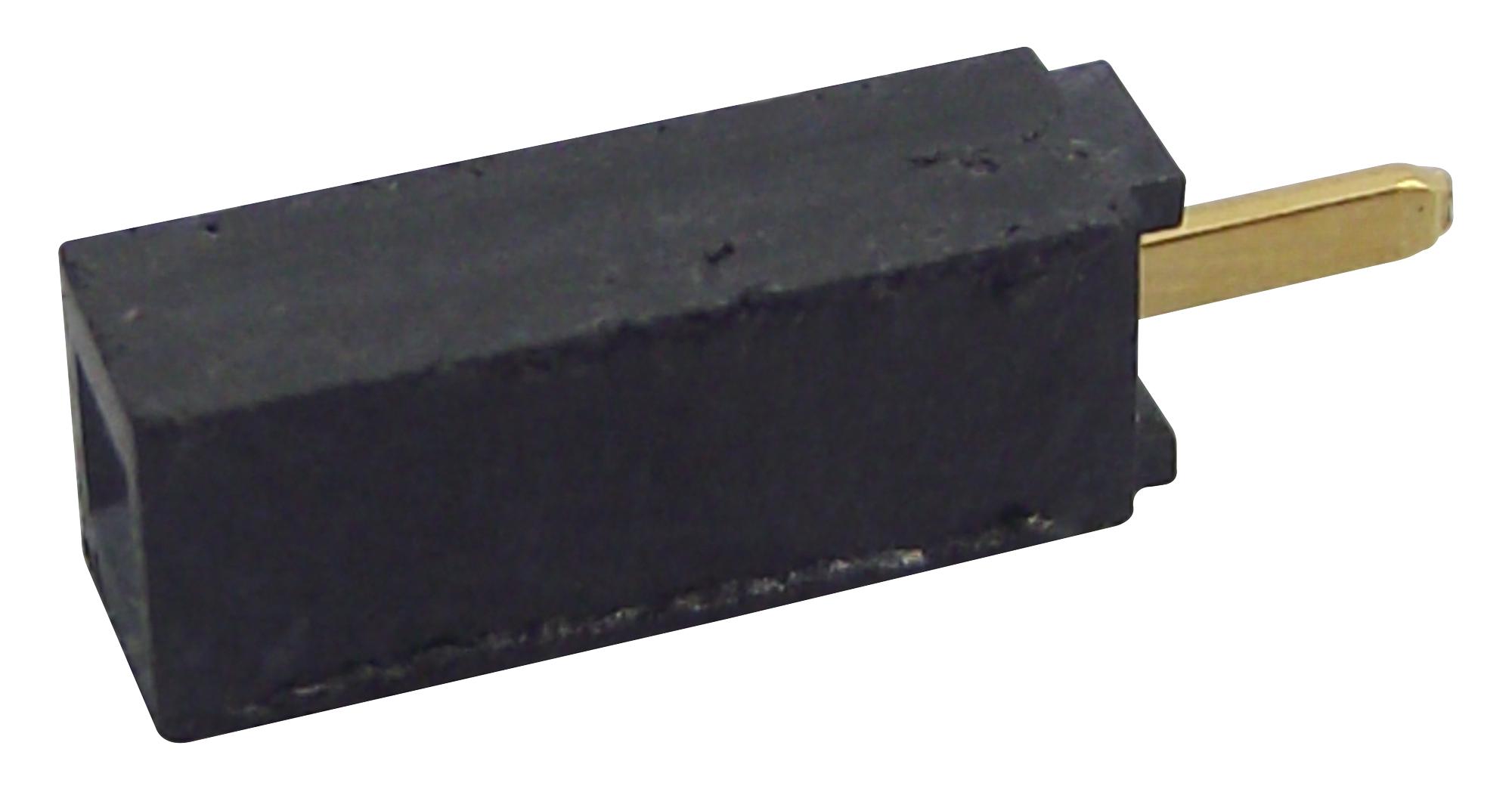

SAMTEC TSW10107GS Terminal Strip Header
The TSW series from Samtec features unshrouded through-hole terminal strip headers with 0.025-inch (0.635mm) square posts, designed for reliable connectivity in industrial applications. Compatible with several Samtec series like SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, these connectors come in single, dual, or triple rows with 2.54mm pitch spacing and straight orientation. Made from phosphor bronze and a black glass-filled polyester insulator, they offer gold-plated contacts rated for -55°C to 125°C and RoHS compliance, with optional locking features for enhanced security.
SAMTEC TSW10107GS Terminal Strip Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over Sn
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC mated with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- Contact Posts: 0.025-inch (0.635mm) square posts
- Pitch: 2.54mm (0.1 inch)
- Configuration: Single, Dual, or Triple row options
- RoHS Compliant: Yes
- Locking Features: Optional for security
- Series: TSW
- Part Number: TSW10107GS
Buy the Samtec Series TSW Terminal Strip Headers: TSW10107GS
Purchase the Samtec TSW series terminal strip headers online today to ensure high-quality, durable connections with gold-plated contacts. Ideal for industrial and electronic applications, these connectors feature 2.54mm pitch spacing, high-temperature operation down to -55°C, and RoHS compliance. Available in various configurations with optional locking features for added security, they are designed to meet strict standards and provide reliable performance. Order now for quick delivery and seamless integration into your projects.
Get Samtec TSW10107GS today—built for reliable signal integrity and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC TSW10107GS?
You can click on the BUY or RFQ button to purchase TSW10107GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10107GS?
You can download the TSW10107GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10107GS?
SAMTEC
