SAMTEC TSW10125GDRA Terminal Strip Header
The TSW series from Samtec features standard unshrouded through-hole terminal strip headers with 0.025 inch (0.635 mm) square posts. Compatible with various Samtec series like SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, these connectors come in configurations with single, dual, or triple rows and optional locking features. They have a 2.54 mm pitch, with contacts plated in gold, operating from -55°C to 125°C. Made of phosphor bronze and black glass-filled polyester, these robust connectors meet UL and CSA standards, ideal for industrial and signal integrity applications.
SAMTEC TSW10125GDRA Terminal Strip Header Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Black Glass Filled Polyester
- Operating Temp Range: -55°C to +125°C
- Contact Plating: Gold
- Voltage Rating: Varies with series, up to 550 VAC
- Pitch Spacing: 2.54 mm
- Contact Count Range: 2 to 25 per row
- Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Standards: UL Listed, CSA Certified
- Application: Industrial signal and power connectors

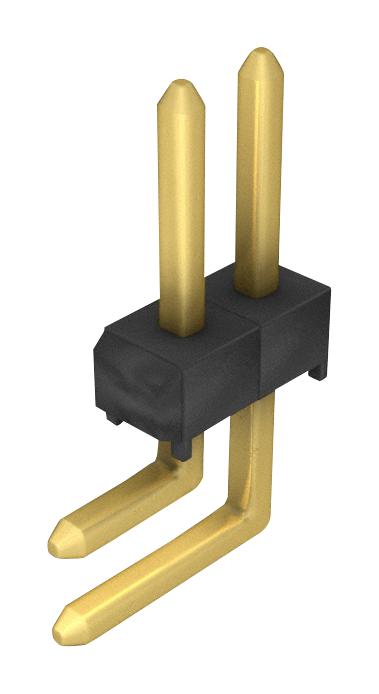

Buy the Buy Samtec TSW Series Part Number TSW10125GDRA Online
Order the Samtec TSW terminal strip header online today to ensure reliable connections and high durability for your industrial electronics. These connectors feature 2.54 mm pitch, gold-plated contacts, and operate efficiently from -55°C to 125°C. Made from phosphor bronze and glass-filled polyester, they comply with UL and CSA standards. Suitable for signal integrity and high-temperature environments, these headers are perfect for customizable configurations with locking options and various contact counts. Purchase now for fast delivery and expert support.
Get Samtec TSW10125GDRA today—built for precision and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC TSW10125GDRA?
You can click on the BUY or RFQ button to purchase TSW10125GDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10125GDRA?
You can download the TSW10125GDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10125GDRA?
SAMTEC
