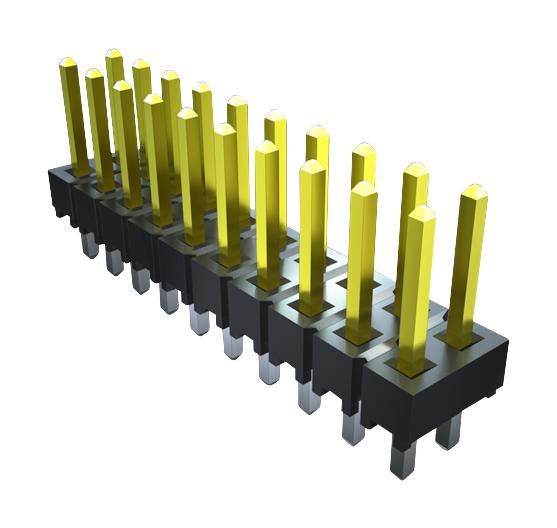

SAMTEC TSW10224TS Electronic Connector
The TSW10224TS is a high-quality connector designed for reliable electrical connections in electronic systems. Featuring black glass-filled polyester insulation material and phosphor bronze terminals plated with gold or tin over nickel, it ensures durability and corrosion resistance. Operating efficiently within a temperature range of -55°C to +105°C, it supports voltages up to 550 VAC when mated with specific series, meeting RoHS compliance. Its compact design and compatibility with various mounting options make it ideal for advanced industrial and electronic applications requiring secure and efficient connections.
SAMTEC TSW10224TS Electronic Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over 50 µ
- Ni
- Operating Temp Range: -55°C to +105°C
- Voltage Rating: 550 VAC mated with SSW; 500 VAC with BCS or ESQ; 450 VAC with RA/-RE mated with BCS or SSM; 400 VAC with CES
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes
- Versions Available: TSW, HTSW; HTSW supports lead-free soldering; TSW does not support lead wave only
- Current Rating Per Pin: Up to 100 A depending on configurations
- Connector Style: Right-angle and Straight versions available
- Operating Temperature: -55°C to +105°C
- Certifications: RoHS compliant
- Designed for secure electrical connection with durable construction and suitable for industrial, automation, and electronic applications.
Buy the Buy Samtec TSW10224TS Part Number TSW10224TS Online
Secure your electronic systems with the Samtec TSW10224TS connector, featuring high current rating, RoHS compliance, and excellent thermal stability. Designed to fit a variety of industrial applications, its robust construction ensures long-term durability and reliable electrical performance. Perfect for automation, control panels, and high-density electronic assemblies, this connector offers easy installation and excellent contact stability. Order online today to benefit from quick delivery, excellent customer support, and competitive prices, ensuring your project stays on schedule with quality components.
Buy Samtec TSW10224TS now and experience unmatched reliability and performance with its durable design and high voltage capacity.
Frequently Asked Questions
Where can I buy SAMTEC TSW10224TS?
You can click on the BUY or RFQ button to purchase TSW10224TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10224TS?
You can download the TSW10224TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10224TS?
SAMTEC
