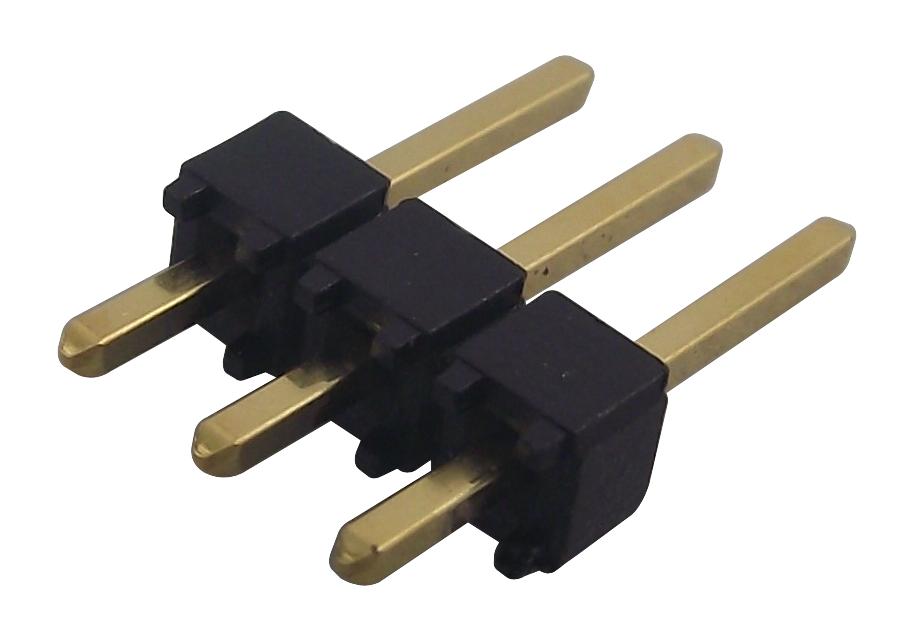

SAMTEC TSW10307GS Terminal Strip Headers
The TSW series from Samtec features unshrouded, through-hole terminal strip headers with a 2.54mm pitch. Made with phosphor bronze terminals and black glass-filled polyester insulators, these high-reliability headers are suitable for industrial applications. They support single, dual, or triple row configurations, offering excellent signal integrity and secure connections with optional locking features. With a temperature range of -55°C to 125°C, gold-plated contacts ensure durability and corrosion resistance. These connectors meet UL and CSA standards, making them a versatile choice for electronics assembly and automation systems.
SAMTEC TSW10307GS Terminal Strip Headers Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over Nickel
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: Varies with configuration, up to 550 VAC
- Pitch: 2.54 mm (0.100 inch)
- Configurations: Single, Dual, or Triple Row (-S, -D, -T, -Q)
- Certifications: UL Listed, CSA Certified
- Contact Material: Phosphor Bronze
- Contact Plating: Gold over Nickel
- Maximum Current Rating: Approximately 5.2 A per pin
Buy the Buy Samtec TSW Series Part Number TSW10307GS Online
Discover the reliable and versatile terminal strip headers from Samtec, ideal for industrial automation and electronics connectivity. Featuring 2.54mm pitch spacing, these headers support high-temperature operation from -55°C to 125°C, with gold-plated contacts ensuring corrosion resistance and durability. They are available in various configurations, including single, dual, and triple rows, suitable for a wide range of applications. Meeting UL and CSA standards, these connectors offer secure locking options for enhanced connection stability. Purchase online now for fast delivery and quality assurance.
Get Samtec TSW10307GS today—built for high reliability, signal integrity, and secure industrial connections.
Frequently Asked Questions
Where can I buy SAMTEC TSW10307GS?
You can click on the BUY or RFQ button to purchase TSW10307GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10307GS?
You can download the TSW10307GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10307GS?
SAMTEC
