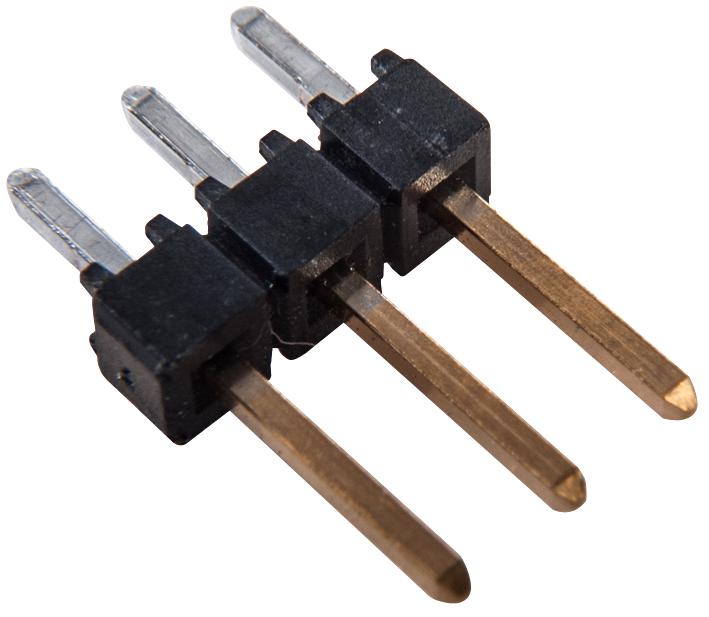

SAMTEC TSW10323LS Terminal Header
The TSW series from Samtec features standard unshrouded terminal strip headers for versatile electronic applications. Constructed with 0.025 inch (0.635 mm) square posts and available in single, dual, or triple-row configurations, these headers are designed to mate with various Samtec connector series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. They have a 2.54 mm pitch, are gold-plated for reliable contact performance, and operate efficiently in temperature ranges from -55°C to 125°C. The headers are made from phosphor bronze and feature a black glass-filled polyester insulator, meeting UL and CSA standards. Optional locking features enhance retention, making them suitable for industrial electronics and interconnect applications.
SAMTEC TSW10323LS Terminal Header Specifications:
- Post Size: 0.025 inch (0.635 mm) square
- Pitch: 2.54 mm
- Material: Phosphor bronze
- Insulator Material: Black glass-filled polyester
- Plating: Gold over nickel
- Operating Temperature Range: -55°C to 125°C
- Standards: UL Listed, CSA Certified
- Configurations: Single, dual, triple-row
- Mounting Type: Through-hole
- Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Locking Feature: Optional
- Application: Industrial electronic assemblies
Buy the Samtec Series TSW Terminal Headers: TSW10323LS
Order the Samtec TSW10323LS terminal header online today to ensure secure, high-quality electrical connections for your industrial and electronic projects. Featuring 0.025 inch posts, gold-plated contacts, and a robust black polyester insulator, this versatile header offers excellent temperature resistance from -55°C to 125°C. Its compatibility with multiple Samtec series, along with optional locking features, guarantees reliable retention in demanding applications. Purchase online for fast delivery and the confidence of authentic, manufacturer-approved components that meet UL and CSA standards.
Buy Samtec TSW10323LS now and experience unmatched reliability and performance in industrial electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC TSW10323LS?
You can click on the BUY or RFQ button to purchase TSW10323LS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10323LS?
You can download the TSW10323LS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10323LS?
SAMTEC
