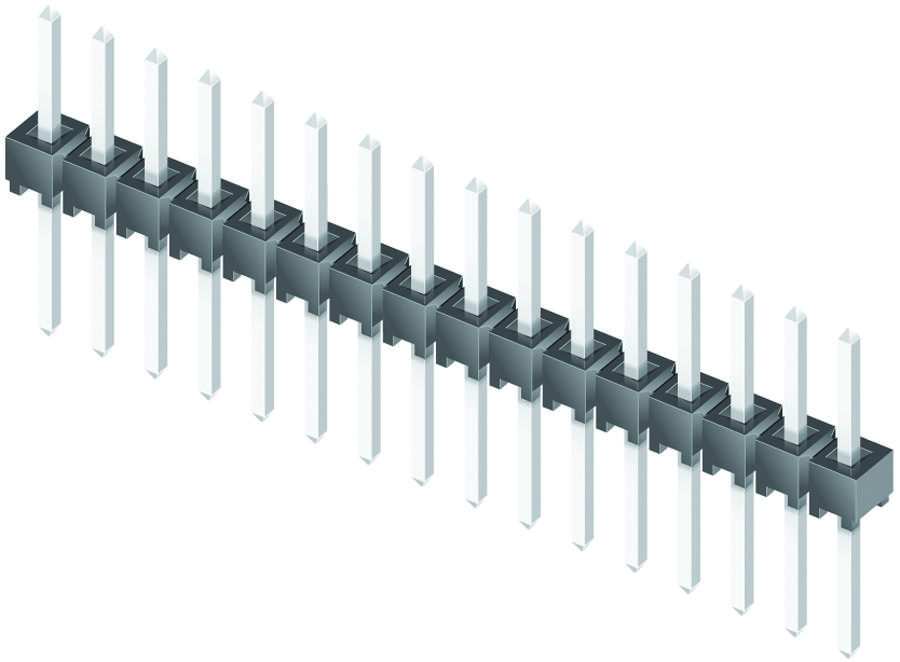

SAMTEC TSW10407GS Terminal Header
The TSW series from Samtec features unshrouded through-hole terminal strip headers with 0.025" (0.635mm) square posts. Designed to mate with various Samtec connectors including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS series, these headers are available in single, dual, or triple row configurations with a 2.54mm pitch spacing. They offer a wide range of pin counts, terminal lengths, and optional locking features for secure connections. The contacts are gold-plated, rated from -55°C to +125°C, made from phosphor bronze, and housed in a black glass-filled polyester insulator. They meet UL and CSA standards, making them ideal for industrial, automation, and high-reliability electronic applications.
SAMTEC TSW10407GS Terminal Header Specifications:
- Post Size: 0.025" (0.635mm) square
- Material: Phosphor bronze
- Plating: Gold
- Insulator Material: Black glass-filled polyester
- Temperature Range: -55°C to +125°C (Gold plating), -55°C to +105°C (Tin plating)
- Voltage Rating: Varies with mated connector, up to 550 VAC
- Pitch: 2.54mm
- Contact Style: Unshrouded through-hole
- Configuration: Single, dual, or triple row
- Certifications: UL Listed, CSA Certified
Buy the Samtec Series TSW Terminal Headers: TSW10407GS
Order the Samtec TSW10407GS terminal header online today and ensure secure, high-quality connections for your industrial or electronic projects. Featuring 2.54mm pitch with unshrouded through-hole design, gold-plated contacts, and a robust black polyester insulator, this component offers excellent resistance to high temperatures from -55°C to +125°C. Its versatile configuration supports multiple pin counts and optional locking mechanisms for added security. Suitable for high-performance automation, electronics, and industrial applications, this product guarantees reliable performance, easy installation, and compliance with UL and CSA standards. Shop now to streamline your assembly process with trusted quality.
Buy Samtec TSW10407GS now and experience unmatched reliability and performance in high-reliability industrial connector solutions.
Frequently Asked Questions
Where can I buy SAMTEC TSW10407GS?
You can click on the BUY or RFQ button to purchase TSW10407GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10407GS?
You can download the TSW10407GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10407GS?
SAMTEC
