SAMTEC TSW10407LS Square Post Header
The TSW10407LS is a high-performance, through-hole, square post header designed for versatile PCB connections. Made from black glass-filled polyester, it features phosphor bronze pins with optional gold or tin plating for enhanced conductivity and corrosion resistance. The connector supports voltage ratings up to 550 VAC and is RoHS compliant, suitable for power and signal applications in industrial machinery, automation, and electronic equipment. It offers easy soldering, robust physical contact, and reliable electrical performance, ensuring secure connections across a variety of electronic systems.
SAMTEC TSW10407LS Square Post Header Specifications:
- Material: Black Glass Filled Polyester
- Pin Material: Phosphor Bronze with Au or Sn over Ni plating
- Voltage Rating: 550 VAC (mated with SSW), 500 VAC (with W or ESQ), 450 VAC (RA/RE with BCS or SSM), 400 VAC (with CES)
- Operating Temperature Range: -55°C to +125°C (with Tin Plating), -35°C to +125°C (with Gold Plating)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pin Centers: 2.54 mm (0.100 inch)
- Number of Positions: 2 positions, with options for more
- Current Rating: Up to 15.2 A depending on connection and configuration
- Connection Type: Through-hole, square post header, with optional elevated right-angle and locking lead options
- Certifications: RoHS compliant, UL recognition possible depending on configuration
- Connector Style: Square post, through-hole, with optional shunts and various styles

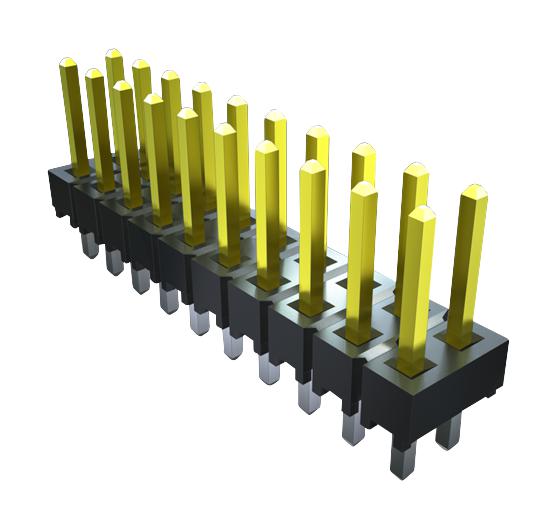

Buy the Buy Samtec TSW10407LS Part Number TSW10407LS Online
Discover the durable and versatile Square Post Header designed for reliable PCB connections in industrial and electronic applications. Made from high-quality materials, it supports voltage ratings up to 550 VAC, with options for gold or tin plating to ensure excellent conductivity and corrosion resistance. The connector features 2.54 mm pin centers, easy through-hole mounting, and RoHS compliance. Its robust design guarantees secure and long-lasting connections in power and signal systems, making it your ideal choice for sophisticated electronic assemblies. Order online for fast delivery and competitive pricing.
Get Samtec TSW10407LS today—built for reliable PCB connections with high current capacity and corrosion-resistant plating.
Frequently Asked Questions
Where can I buy SAMTEC TSW10407LS?
You can click on the BUY or RFQ button to purchase TSW10407LS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10407LS?
You can download the TSW10407LS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10407LS?
SAMTEC
