SAMTEC TSW10520TS Electrical Connector
The TSW10520TS is a high-quality, RoHS compliant, black glass-filled polyester insulator with phosphor bronze terminals. Suitable for electrical connectors, it features gold or tin over nickel plating, and operates within -55°C to +105°C. Designed for reliable connections, it provides up to 550 VAC rated voltage when mated with compatible series. Ideal for electronic and electrical applications, this connector offers durability, versatility, and compliance with industry standards. Its robust build ensures consistent performance in demanding environments, making it suitable for various industrial, automation, and electronics projects.
SAMTEC TSW10520TS Electrical Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold or Sn over 50 µ
- Ni (1.27 µm)
- Operating Temperature Range: -55°C to +105°C
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with RA/-RE, 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Styles: Straight, Right-angle options available (-RA, -RE, -T, -O)
- Compatible Series: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW
- Maximum Current per Pin: Varies (up to 100A for Power options)
- Certifications: RoHS compliant
- Design: Non-standard lengths and styles may be available upon request

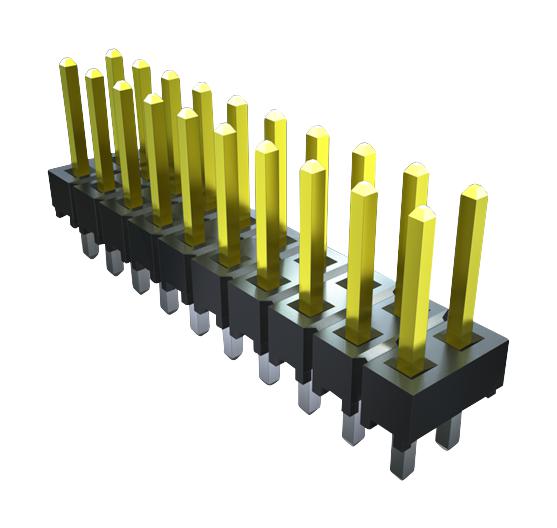

Buy the Buy Samtec TSW10520TS Part Number TSW10520TS Online
Enhance your electrical and electronic assemblies with the Samtec TSW10520TS connector. Made from durable glass-filled polyester and featuring gold or tin over nickel plated phosphor bronze terminals, it provides excellent conductivity and reliability. Operating in temperatures from -55°C to +105°C, this RoHS-compliant connector supports voltage ratings up to 550 VAC. Its versatile design includes straight and right-angle styles, compatible with various series for flexible applications. Purchase online now for dependable, industry-standard connectivity in your projects.
Order your Samtec Series TSW10520TS connector today and ensure reliable, high-performance electrical connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC TSW10520TS?
You can click on the BUY or RFQ button to purchase TSW10520TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10520TS?
You can download the TSW10520TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10520TS?
SAMTEC
