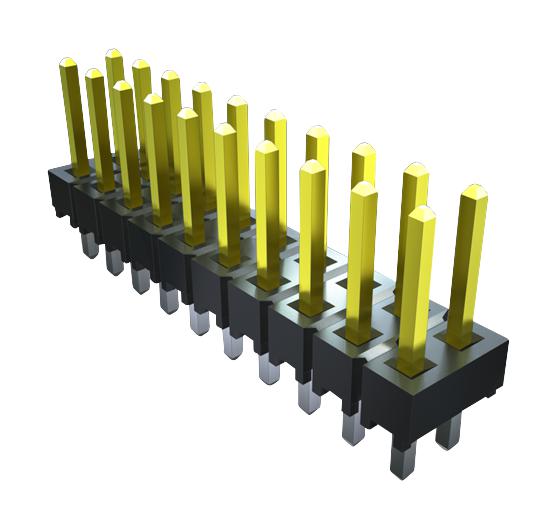

SAMTEC TSW10808GD High-Temperature Connector
The TSW-108-08-GD is a high-temperature, RoHS-compliant electrical connector designed for industrial applications. It features a black glass-filled polyester insulator, phosphor bronze terminals with gold or tin plating, and can operate within a temperature range of -55°C to +125°C with gold plating. Suitable for various mating configurations, it offers reliable current ratings up to 5.2 A per pin, and is compatible with multiple series for versatile use. Perfect for industrial, automation, and control systems requiring durable and high-performance connectivity.
SAMTEC TSW10808GD High-Temperature Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- (1.27 μm) Ni or Tin
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC (mated with SSW), 500 VAC (with BCS or ESQ), 450 VAC (RE mated with BCS or SSM), 400 VAC (mated with CES)
- Current Rating: Up to 5.2 A per pin depending on configuration
- Number of Pins: Variable, compatible with multiple series
- Pin Center Spacing: approximately 2.54 mm (0.100 inch)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSW: Yes, TSW: No, Lead Wave Only)
Buy the Samtec TSW10808GD – Reliable Industrial Connector for Automation and Control Systems
Order the Samtec TSW10808GD online today and streamline your assembly with a high-temperature, RoHS-compliant connector designed for industrial environments. Its durable construction, gold or tin plating, and wide temperature range ensure dependable connections even in challenging conditions. Ideal for automation, control systems, and manufacturing equipment. Featuring versatile pin configurations, this connector simplifies installation and maintenance while delivering excellent electrical performance. Enhance your project reliability by purchasing this top-quality connector online now.
Buy Samtec TSW10808GD now and experience unmatched reliability and performance in your industrial, automation, or control applications.
Frequently Asked Questions
Where can I buy SAMTEC TSW10808GD?
You can click on the BUY or RFQ button to purchase TSW10808GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW10808GD?
You can download the TSW10808GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW10808GD?
SAMTEC
