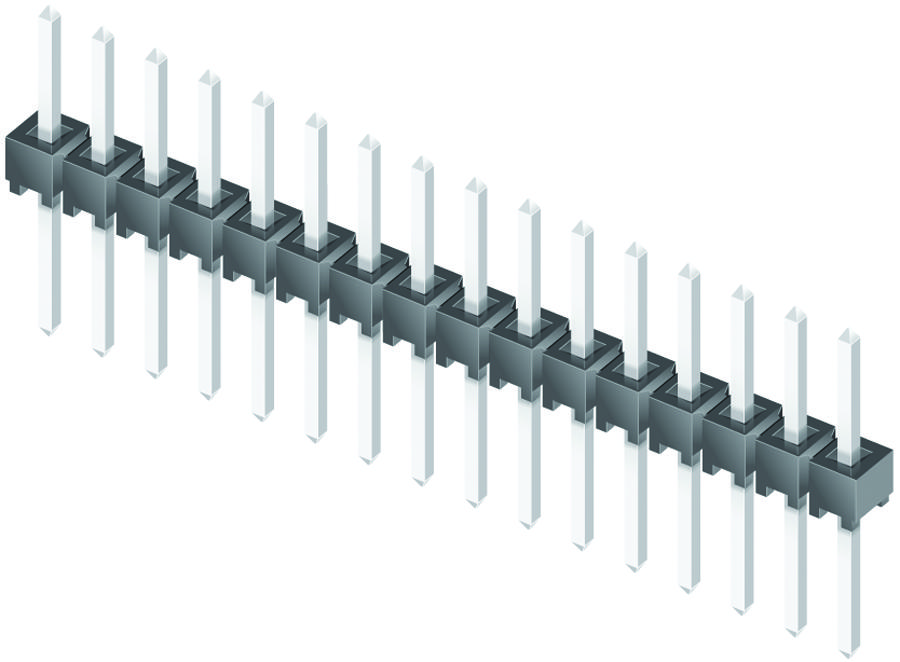

SAMTEC TSW11007GS Terminal Strip Connector
The TSW series from Samtec offers unshrouded through-hole terminal strip headers with a 2.54mm pitch, featuring 0.025" square posts for dependable connections. Made with gold-plated phosphor bronze contacts and housed in a black glass-filled polyester insulator, these connectors ensure signal integrity and durability in high-temperature environments from -55°C to +125°C. Compatible with multiple Samtec series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, they meet UL and CSA standards, with optional locking for secure, vibration-resistant connections, ideal for reliable electronic assembly.
SAMTEC TSW11007GS Terminal Strip Connector Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold (Au) or Tin (Sn) over 50 µ" (1.27 µm) Nickel
- Operating Temperature Range: -55 °C to +125 °C
- Voltage Ratings: 550 VAC with SSW series, 500 VAC with BCS or ESQ, 450 VAC with RA/RE versions
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Contact Type: Square posts, gold-plated for durability
- Connector Style: Unshrouded through-hole terminal strip headers
- Pitch: 2.54mm (0.1 inches)
- Configurations: Single, dual, or triple row options
- Standards: UL and CSA certified
- Locking feature: Optional for secure connections
Buy the Samtec TSW-109-10-F-D-RA – Reliable Terminal Strip Connectors for Industrial Applications
Purchase the Samtec Terminal Strip Connector today to ensure reliable, high-quality electronic connections. Designed with gold-plated contacts and robust insulators, this connector supports high-temperature environments from -55°C to +125°C. Its versatile compatibility with multiple series makes it ideal for signal integrity in industrial and electronic applications. Secure your electronic assemblies with confidence using this durable, RoHS-compliant component, available for quick online ordering, ensuring fast delivery and dependable performance for your projects.
Get Samtec TSW-109-10-F-D-RA today—built for high-temperature operation and secure connections in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC TSW11007GS?
You can click on the BUY or RFQ button to purchase TSW11007GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW11007GS?
You can download the TSW11007GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW11007GS?
SAMTEC
