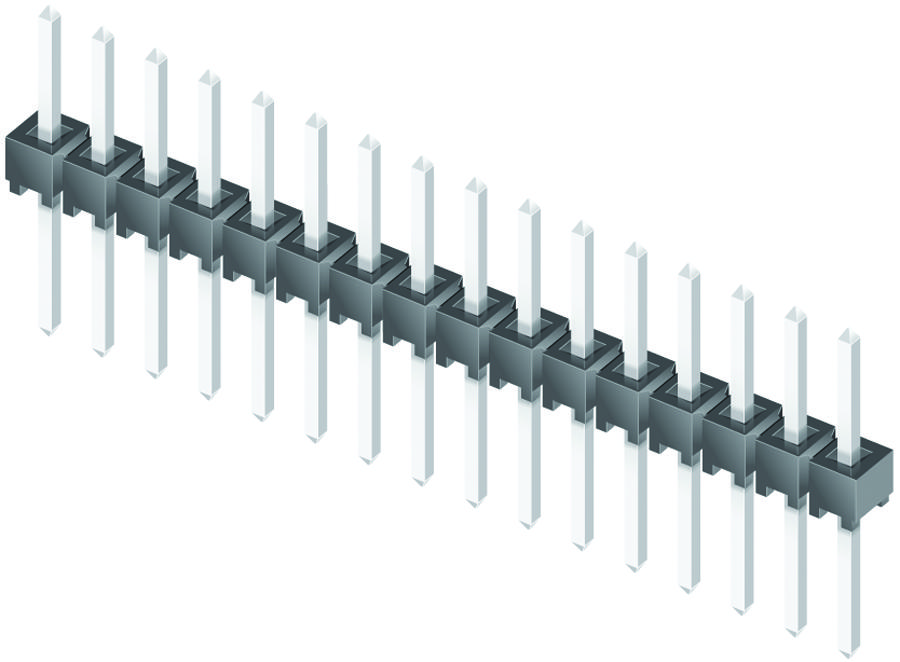

SAMTEC TSW11207GS Terminal Header
The TSW series from Samtec comprises standard unshrouded through-hole terminal strip headers featuring 0.025 inch (0.635 mm) square posts. Compatible with various Samtec series connectors, these headers come in single, dual, or triple-row configurations with diverse pin counts and terminal lengths. Designed for high-temperature environments from -55°C to 125°C, they have 10 µ-inch gold-plated contacts made of phosphor bronze housed in a black glass-filled polyester insulator. Certified for UL and CSA, they include optional locking leads and clips, making them ideal for industrial projects requiring reliable, durable connections.
SAMTEC TSW11207GS Terminal Header Specifications:
- Post Size: 0.025 inch (0.635 mm) square
- Material: Phosphor bronze
- Plating: 10 µ-inch (0.25 µm) gold
- Insulator Material: Black Glass-Filled Polyester
- Temperature Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Voltage Rating: Varies with series, up to 550 VAC with SSW
- Pitch Spacing: 2.54 mm
- Number of Contacts: 1 to 50 per row
- Configuration: Single, dual, or triple-row options
- Certifications: UL Listed, CSA Certified
- RoHS Compliant: Yes
- Optional Features: Locking leads and clips
- Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Max Current per Pin: 5.2 A / 6.3 A depending on version
Buy the Samtec TSW11207GS – Reliable Terminal Headers for Industrial Applications
Purchase the Samtec TSW series terminal headers online today to benefit from high-quality, high-temperature compatible connectors designed for robust industrial applications. Featuring 2.54 mm pitch and 0.025 inch square posts, these headers support up to 50 contacts per row and include optional locking features for secure connections. Made with phosphor bronze and gold-plated for durability, they operate safely across a temperature range from -55°C to 125°C. Certified by UL and CSA, they ensure compliance with industry standards, making them ideal for demanding industrial environments requiring reliable electrical connections.
Order your Samtec Series TSW11207GS high-temperature terminal headers today and ensure your industrial connections are secure, durable, and reliable for demanding projects.
Frequently Asked Questions
Where can I buy SAMTEC TSW11207GS?
You can click on the BUY or RFQ button to purchase TSW11207GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW11207GS?
You can download the TSW11207GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW11207GS?
SAMTEC
