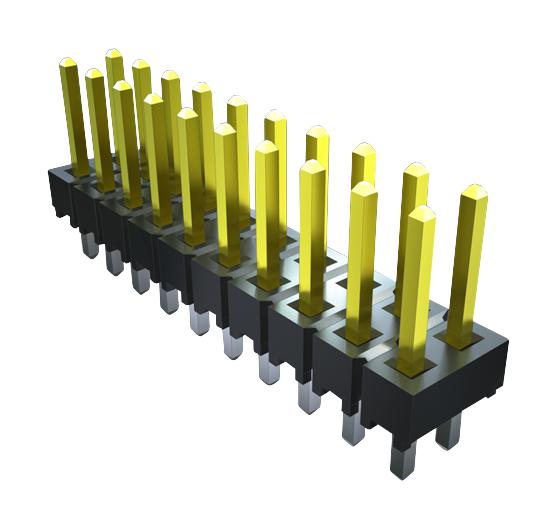

SAMTEC TSW11407GS Through-Hole Header Connector
The TSW11407GS is a high-quality through-hole header designed for reliable board and cable mating in electronic systems. Crafted from black glass-filled polyester with phosphor bronze terminals, it features gold or tin plating for enhanced conductivity and corrosion resistance. Operating within a temperature range of -55°C to +105°C, it supports voltages up to 550 VAC and current ratings up to 15.2 A. The connector standards ensure RoHS compliance and lead-free solderability, making it ideal for demanding industrial and electronic applications requiring durable, precision component connections.
SAMTEC TSW11407GS Through-Hole Header Connector Specifications:
- Material: Black Glass Filled Polyester (TSW), Liquid Crystal Polymer (HTSW)
- Terminal Material: Phosphor Bronze with Gold or Sn plating
- Operating Temp Range: -55°C to +105°C (Tin version); -35°C to 125°C (Gold version)
- Voltage Rating: 550 VAC mated with SSW; 500 VAC with WBC, ESQ; 450 VAC with RA/Re; 400 VAC with CES
- Current Rating: Up to 15.2 A depending on configuration and number of positions
- Plating: Gold or Sn over 50 μ
- pin diameter: 0.025 inches (0.64 mm)
- Centers: 2.54 mm and 5.08 mm options
- Certifications: RoHS compliant, Lead-Free solderable
Buy the Samtec Series TSW: Through-Hole Header Connector: TSW11407GS
Order the Samtec TSW11407GS through-hole header connector online today and enjoy fast delivery of a highly reliable, RoHS compliant component. Its durable construction features gold and tin plating on phosphor bronze terminals, ensuring excellent electrical conductivity and resistance to corrosion. Designed for demanding industrial applications, it operates efficiently within a wide temperature range of -55°C to +105°C and supports voltage ratings up to 550 VAC with current ratings up to 15.2 A. Easy to install and solder, this connector guarantees a secure connection for your electronic assemblies, providing long-lasting performance and peace of mind.
Buy Samtec TSW11407GS high-quality through-hole header connector now and experience unmatched reliability and performance for your electronic needs.
Frequently Asked Questions
Where can I buy SAMTEC TSW11407GS?
You can click on the BUY or RFQ button to purchase TSW11407GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW11407GS?
You can download the TSW11407GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW11407GS?
SAMTEC
