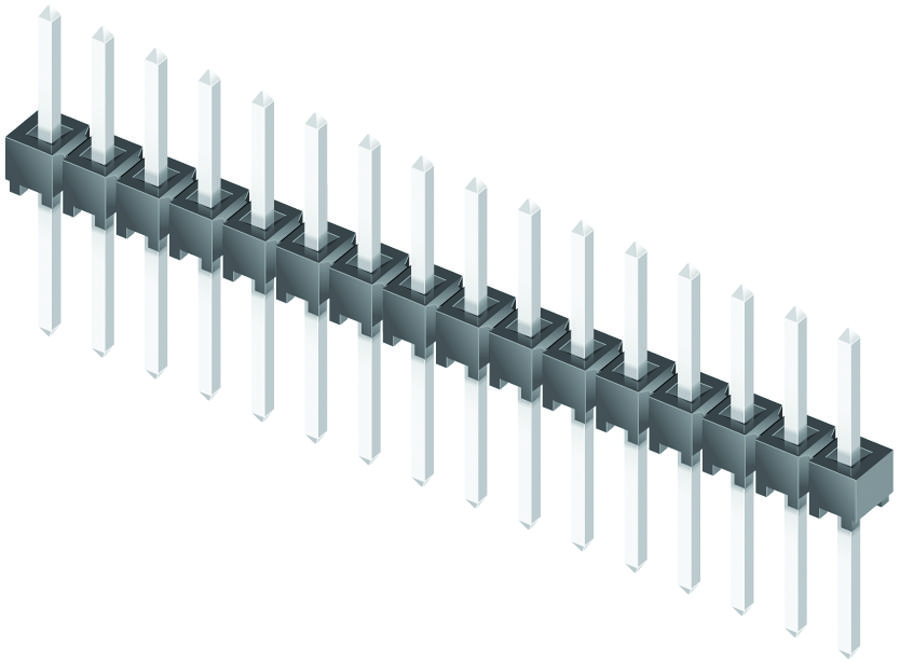

SAMTEC TSW11807GS Terminal Headers
The TSW series from Samtec features standard unshrouded terminal strip headers designed for through-hole mounting, with 0.025 inch (0.635 mm) square posts. Compatible with various Samtec connector series, these headers come in single, dual, or triple row configurations with a 2.54 mm pitch and support 1 to 50 contacts per row in straight orientation. Made from phosphor bronze with gold-plated contacts, they operate from -55°C to 125°C. The black glass-filled polyester insulator ensures durability, with optional locking leads available. These high-reliability connectors meet UL and CSA standards, suitable for industrial and signal integrity applications, offering broad pin counts and terminal lengths.
SAMTEC TSW11807GS Terminal Headers Specifications:
- Insulator Material: Black Glass-Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold on post, Tin on tail
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS/ESQ, 450 VAC with BCS/SSM, 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSW), No (TSW)
- Pin Centers: 2.54 mm (0.100 inch)
- Post Dimensions: 0.025 inch (0.635 mm) square
- Configurations: 1-50 contacts per row, single, dual, or triple row
- Temperature Range: -55°C to +125°C
- Certifications: UL Listed, CSA Certified
- Talk about broad pin counts, terminal lengths, connector series compatibility, and optional locking features for user applications.
Buy the Samtec Series TSW Terminal Headers: TSW11807GS
Purchase Samtec TSW series terminal headers online today and secure high-quality, durable connectors designed for through-hole mounting with broad configurations. Featuring 0.025 inch square posts, these headers are made from phosphor bronze with gold-plated contacts for optimal signal transmission. Operating from -55°C to 125°C, they meet UL and CSA standards, ensuring safety and compliance. Available in single, dual, or triple rows with 2.54 mm pitch, these connectors are perfect for industrial automation, control panels, and signal connection needs, offering versatility and long-term reliability.
Buy Samtec TSW11807GS terminal headers now and experience unmatched reliability and high-performance signal integrity for industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC TSW11807GS?
You can click on the BUY or RFQ button to purchase TSW11807GS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW11807GS?
You can download the TSW11807GS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW11807GS?
SAMTEC
