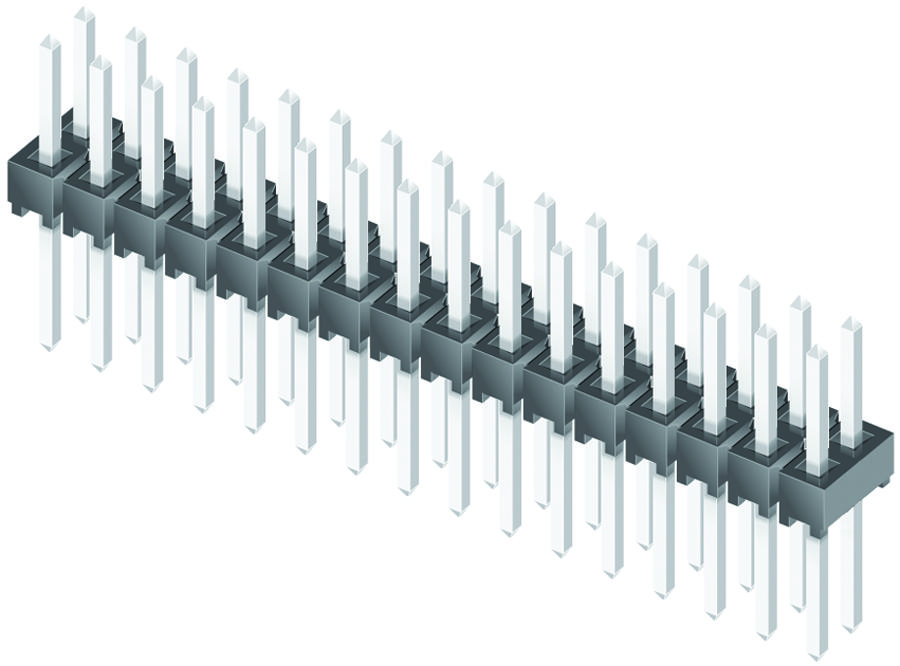

SAMTEC TSW12505GD Terminal Strip Headers
The TSW series from Samtec are durable through-hole mounting terminal strip headers with a 2.54mm pitch, available in single, dual, or triple row configurations. Featuring 0.025-inch square posts, they mate reliably with compatible Samtec connectors like SSW, SSQ, SSM, and others. Made with phosphor bronze contacts plated with gold, these headers ensure excellent signal quality and corrosion resistance. Encased in a black glass-filled polyester insulator, they operate from -55°C to 125°C. Their versatile design includes optional locking mechanisms, making them ideal for industrial, automation, and control systems requiring robust interconnect solutions.
SAMTEC TSW12505GD Terminal Strip Headers Specifications:
- Pitch: 2.54mm
- Contact Material: Phosphor Bronze
- Plating: Gold
- Insulator Material: Black Glass-Filled Polyester
- Operating Temperature Range: -55°C to +125°C
- Mounting Type: Through-hole
- Number of Rows: Single, Dual, or Triple
- Pin Count: Varies according to model
- Post Thickness: 0.025 inch (0.635mm) square posts
- Standards: UL Listed, CSA Certified
- Features: Locking leads and clips optional
- Compatibility: Mates with SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
Buy the Samtec TSW12505GD – Reliable Terminal Strip Headers for Industrial Applications
Enhance your electrical assemblies with our Samtec terminal strip headers designed for secure, reliable connections in industrial environments. Featuring a 2.54mm pitch, gold-plated contacts, and optional locking mechanisms, these headers are ideal for automation, control panels, and equipment requiring durable, high-quality interconnects. Easy to mount with through-hole design, they comply with UL and CSA standards, operate across a wide temperature range, and fit a variety of mating connectors. Get yours online today for dependable performance and seamless integration in your projects.
Order your Samtec Series TSW12505GD terminal headers today and ensure robust, reliable connections for your industrial or automation projects.
Frequently Asked Questions
Where can I buy SAMTEC TSW12505GD?
You can click on the BUY or RFQ button to purchase TSW12505GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW12505GD?
You can download the TSW12505GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW12505GD?
SAMTEC
