SAMTEC TSW15006LD Terminal Strip Headers
The TSW series from Samtec offers unshrouded through-hole terminal strip headers with 0.025-inch square posts, compatible with numerous Samtec series. Available in single, dual, or triple row configurations, these connectors support 1 to 50 contacts per row with standard straight orientation. Rated for temperatures from -55°C to 125°C, they feature phosphor bronze terminals and black glass-filled polyester insulators. These RoHS-compliant connectors meet UL and CSA standards, making them ideal for industrial projects requiring reliable, high-temperature-rated connections and secure locking options.
SAMTEC TSW15006LD Terminal Strip Headers Specifications:
- Insulator Material: Black glass-filled polyester
- Terminal Material: Phosphor bronze
- Plating: Gold over 50 µ
- Operating Temp Range: -55°C to +125°C with Gold plating, -55°C to +105°C with Tin plating
- Voltage Rating: Varies with mating series, up to 550 VAC
- Contact Pitch: 2.54 mm (0.1 inch)
- Number of Contacts: 1 to 50 per row
- Connection Type: Through-hole
- Configuration: Single, dual, or triple row options
- RoHS Compliant: Yes
- Certifications: UL Listed, CSA Certified
- Mounting Style: Through-hole headers
- Temperature Rating: -55°C to +125°C
- Connector Style: Unshrouded terminal strip headers

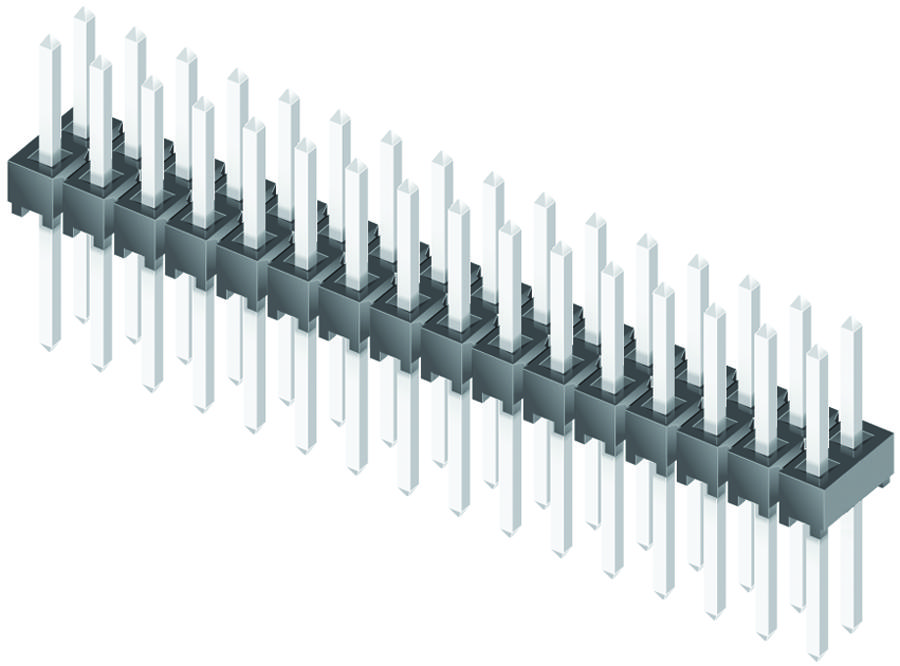

Buy the Samtec Series TSW Terminals: TSW15006LD
Purchase the Samtec TSW series terminal strip headers online today for robust, high-temperature-rated connections suitable for industrial projects. These unshrouded through-hole headers support up to 50 contacts per row, ensuring flexibility for various configurations. Designed with black glass-filled polyester insulators and phosphor bronze terminals, they offer excellent durability and conductivity. RoHS compliant and meeting UL and CSA standards, these connectors guarantee safety and quality. Place your order now to secure reliable, easy-to-install headers that meet your technical requirements and standards.
Order your Samtec Series TSW15006LD terminal header today and ensure reliable high-temperature connections for industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC TSW15006LD?
You can click on the BUY or RFQ button to purchase TSW15006LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW15006LD?
You can download the TSW15006LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW15006LD?
SAMTEC
