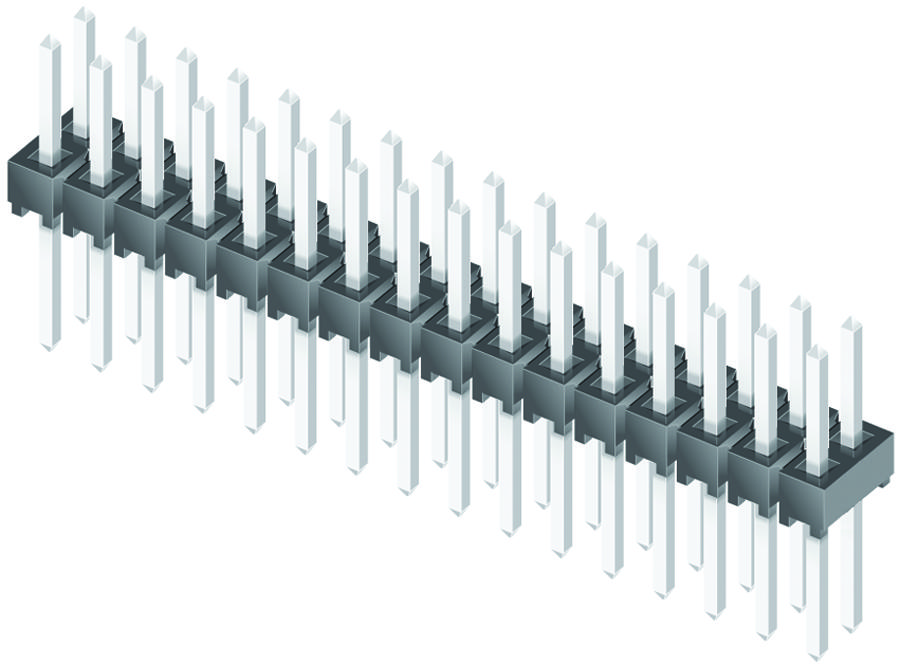

SAMTEC TSW15007LD Industrial Connector
The product is a high-performance connector designed for reliable electrical connections in industrial applications. Constructed with durable materials like phosphor bronze and glass-filled polyester, it offers excellent temperature resistance from -55°C to +125°C. The connector features RoHS compliance, lead-free solderability (HTSW version), and a voltage rating ranging from 400 VAC to 550 VAC depending on mating configuration. With precise pin centers of 2.54 mm and various optional styles including right-angle and shunt configurations, this connector ensures secure connections across multiple industries, suited for demanding environments.
SAMTEC TSW15007LD Industrial Connector Specifications:
- Insulator Material: TSW: Black Glass Filled Polyester, HTSW: Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 µ
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- Operating Temperature Range: -55°C to +125°C (Gold plating), -55°C to +105°C (Tin plating)
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes (HTSW); No (TSW, Lead wave only)
- Pin Center Spacing: 2.54 mm (0.100") centers, various optional styles including right-angle configurations
- Current Rating Per Pin: 2.2 A to 5.2 A depending on style
- Certifications: RoHS compliant, RoHS certification available
- Connectors include various options such as straight and right-angle styles, with customizable plating and shunt options.
Buy the Samtec TSW15007LD – Reliable Connector for Industrial Applications
Get your Samtec TSW15007LD connector online today and enjoy fast, reliable delivery. Engineered for demanding industrial environments, this connector ensures secure, durable electrical connections with RoHS compliance and lead-free solderability. Featuring various styles including straight and right-angle options, it provides flexibility for your specific application needs. Built with high-quality materials like phosphor bronze and special insulators, this connector supports voltages up to 550 VAC and temperature ranges from -55°C to +125°C. Purchase now for trusted performance and seamless integration in your projects.
Order your Samtec Series TSW15007LD connector today and give your projects the dependable quality they deserve, with robust design and multiple configurations.
Frequently Asked Questions
Where can I buy SAMTEC TSW15007LD?
You can click on the BUY or RFQ button to purchase TSW15007LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW15007LD?
You can download the TSW15007LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW15007LD?
SAMTEC
