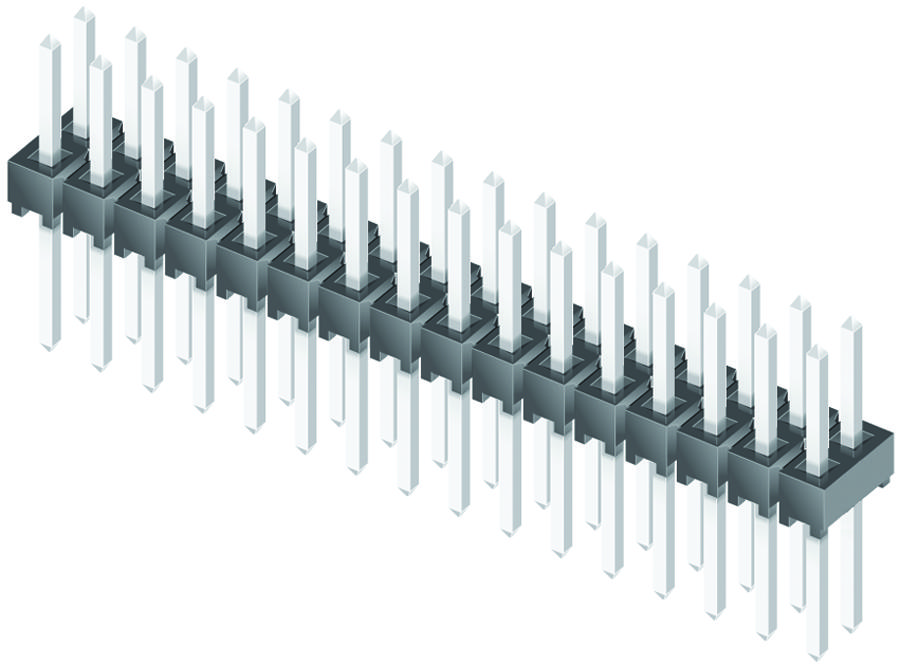

SAMTEC TSW15014LD Pin Header
The TSW series from Samtec are unshrouded through-hole terminal strip headers with 0.025 inch (0.635 mm) square posts, designed for high reliability and signal integrity in electronic assemblies. They interface seamlessly with multiple Samtec connector series, including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, with configurations from single to triple row and pitch of 2.54 mm. Made of phosphor bronze contacts with 10 µin gold plating, mounted on black glass-filled polyester insulators, these headers operate from -55°C to 125°C and meet UL and CSA standards.
SAMTEC TSW15014LD Pin Header Specifications:
- Contact Material: Phosphor Bronze
- Plating: 10 µin gold
- Insulator Material: Black glass-filled polyester
- Operating Temperature Range: -55°C to +125°C
- Pitch: 2.54 mm
- Number of Contacts: 1 to 50 per row
- Configurations: Single, dual, or triple row
- Standards: UL Listed, CSA Certified
- Designed for high signal integrity and reliable connections
- Suitable for high-density electronic connections in industrial applications
- Compatible with multiple Samtec connector series
- Post Size: 0.025 inch (0.635 mm) square
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
Buy the Samtec TSW15014LD – Reliable Pin Header for Industrial Applications
Purchase the Samtec TSW15014LD pin header online and experience reliable high-density connections with gold-plated contacts and robust insulating materials. Designed to meet stringent industry standards, this header ensures excellent signal integrity and durability. Its versatile configuration options allow seamless integration into various electronic assemblies, making it ideal for industrial, automation, and control applications. With quick online ordering, ensure your project receives trusted quality components with excellent performance characteristics for demanding electrical connectivity needs.
Get Samtec TSW15014LD today—built for high reliability and precise electrical connections in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC TSW15014LD?
You can click on the BUY or RFQ button to purchase TSW15014LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW15014LD?
You can download the TSW15014LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW15014LD?
SAMTEC
