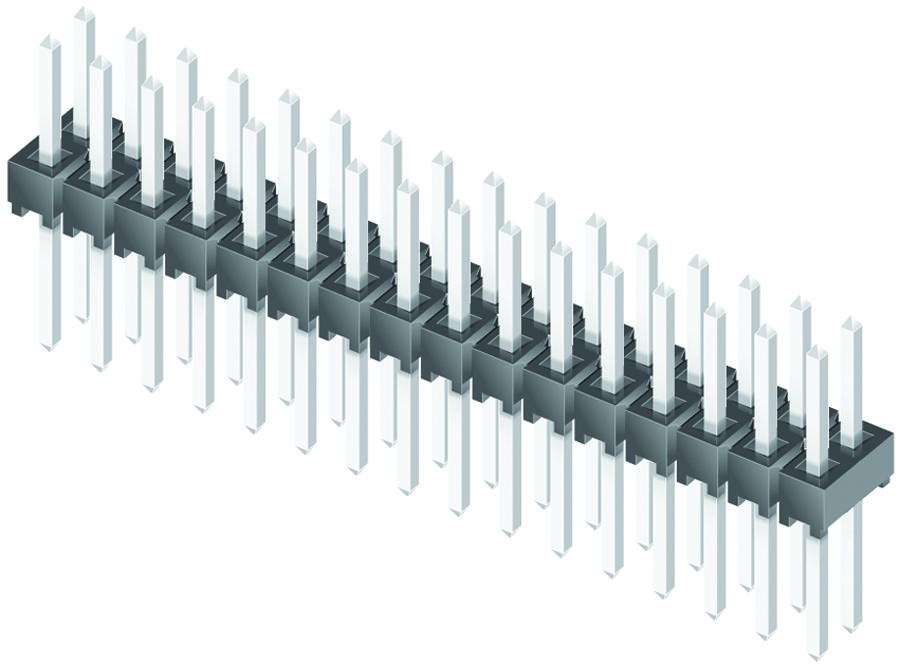

SAMTEC TSW15017LD Terminal Strip Header
The TSW series from Samtec are unshrouded through-hole terminal strip headers designed for reliable signal connections in industrial environments. Featuring 0.025-inch (0.635mm) square posts, these connectors support diverse configurations with single, dual, or triple rows and various pin counts and terminal lengths. They have a 2.54mm pitch, are available in straight orientation, and operate in temperatures from -55°C to 125°C thanks to gold-plated contacts. Made from phosphor bronze with a black glass-filled polyester insulator, they are UL and CSA compliant, suitable for applications needing secure, durable, and high-temperature signal connections.
SAMTEC TSW15017LD Terminal Strip Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 1.27 μm Ni
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- Pin Center Spacing: 2.54mm (0.100")
- Pin Posts: 0.025-inch (0.635mm) square
- Configurations: Single, dual, or triple rows, various pin counts
- Rated Current (per pin): 2.0 A
- Certifications: UL Listed, CSA Certified
- Orientation Options: Straight, with optional locking mechanisms
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes for HTSW; No for TSW (lead wave only)
Buy the Samtec Series TSW: TSW15017LD
Purchase the Samtec TSW15017LD terminal strip headers online today to experience durable, high-temperature signal connections. Designed with 0.025-inch posts and 2.54mm pitch for versatile configurations, these headers are ideal for industrial and high-reliability applications. Made from phosphor bronze and featuring gold plating, they support temperatures up to 125°C, ensuring optimal performance in challenging environments. Easy to install and RoHS compliant, these connectors provide secure connections, flexible configurations, and long-lasting durability for your projects.
Order your Samtec Series TSW15017LD high-temperature terminal headers today and ensure reliable, secure signal connections for demanding industrial applications.
Frequently Asked Questions
Where can I buy SAMTEC TSW15017LD?
You can click on the BUY or RFQ button to purchase TSW15017LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW15017LD?
You can download the TSW15017LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW15017LD?
SAMTEC
