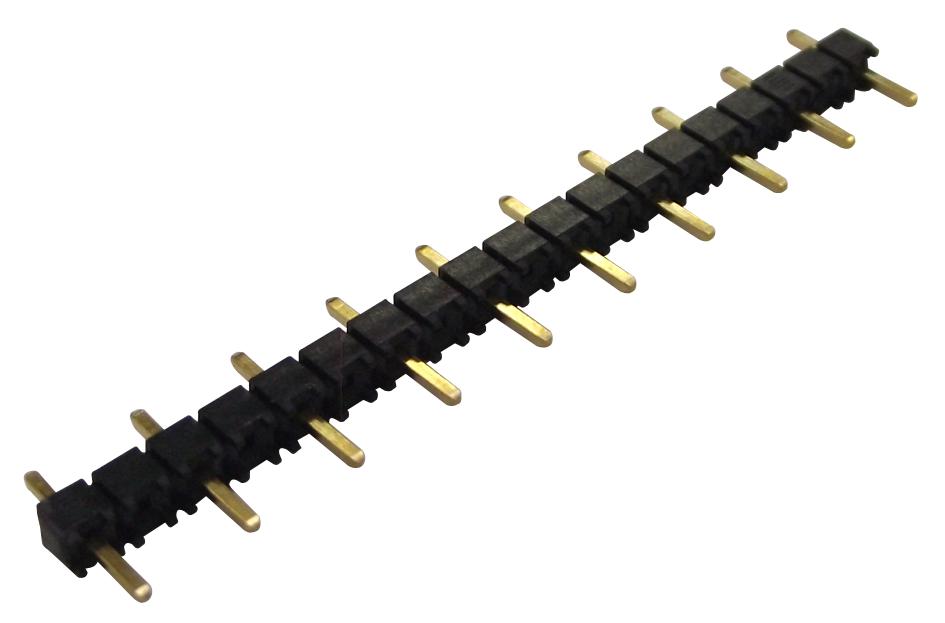

SAMTEC TSW20215GS Terminal Strip Header
The TSW series from Samtec are standard unshrouded terminal strip headers designed for through-hole mounting. With 0.025-inch square posts, these connectors support high signal integrity in industrial settings and fit various Samtec series. Available in single to triple rows, they feature 2.54mm pitch spacing, gold-plated contacts, and operate from -55°C to 125°C. Constructed with phosphor bronze and black glass-filled polyester insulators, they meet UL and CSA standards, offering optional locking features for reliable connections in demanding applications.
SAMTEC TSW20215GS Terminal Strip Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 µ
- Temperature Rating: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with RAV-RE, 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes with HTSW, No with TSW (Lead Wave Only)
- Current Rating: Up to 5.2 A per pin depending on version and contact size
- Pin Centers: 2.54mm (0.100 inch), with options up to 6.08mm
- Operating Temp Range: -55°C to +125°C or +105°C depending on plating
- Maximum Contacts: Supports 1 to 50 contacts per row with straight or right-angle orientation
- Compatibilities: Supports various connector series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Insulator Material: Black Glass Filled Polyester for TSW, Natural Liquid Crystal Polymer for HTSW
- Contact Material: Phosphor Bronze, Plated with Gold over 50 µ
Buy the Samtec Series TSW: High-Density Connector for Industrial Applications: TSW20215GS
Discover the reliable Samtec Terminal Strip Header series for industrial signal connections. Featuring 2.54mm pitch, gold-plated contacts, and high temperature tolerance, these connectors ensure secure, high-performance connections. Ideal for demanding environments, they support up to 50 contacts per row with straight or right-angle options. Constructed with durable materials meeting UL and CSA standards, these headers are versatile and easy to install. Purchase online now for fast delivery and secure your high-quality wiring needs for professional engineering projects.
Order your Samtec Series TSW connector today and give your industrial wiring projects the dependable, high-performance quality they deserve.
