SAMTEC TSW20224LS Terminal Header Connectors
The TSW series from Samtec features unshrouded through-hole terminal strip headers with a 2.54mm pitch. These connectors include a 0.025 inch (0.635mm) square post and are compatible with various Samtec series such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. Available in single, dual, or triple rows, they offer different pin counts and terminal lengths to ensure signal integrity and reliable connections. The contacts are gold-plated on phosphor bronze terminals. Rated from -55°C to 125°C, they feature black glass-filled polyester insulators, UL and CSA certifications, and optional locking options suitable for industrial applications.
SAMTEC TSW20224LS Terminal Header Connectors Specifications:
- Pitch: 2.54mm
- Post Size: 0.025 inch (0.635mm) square
- Material: Black glass-filled polyester insulator
- Contact Material: Phosphor bronze
- Plating: Gold over 50 micro inches (1.27 μm) nickel
- Operating Temperature Range: -55°C to +125°C
- Voltage Ratings: 550 VAC (mated with SSW), 500 VAC (mated with BCS or ESQ), 450 VAC (mated with BCS or SSM), 400 VAC (mated with CES)
- Certifications: UL Listed, CSA Certified
- Configurations: Single, dual, or triple row options
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSW version), No (TSW version); Lead wave only
- Optional locking features available for secure connections
- Compatible with various Samtec connector series, including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS

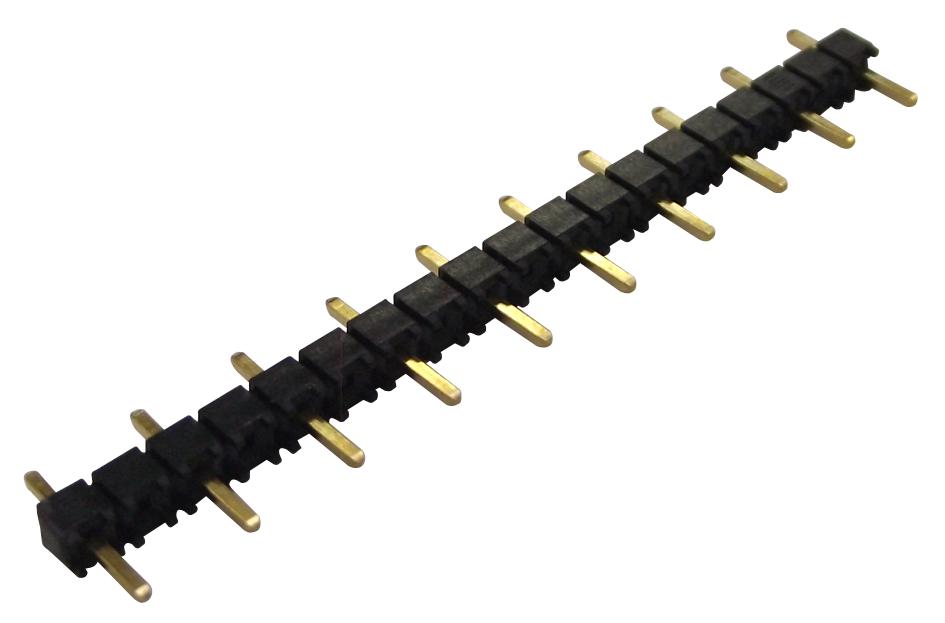

Buy the Buy Samtec TSW Series Connector Part Number TSW20224LS Online
Discover the high-quality Samtec TSW series terminal headers, featuring 2.54mm pitch and gold-plated phosphor bronze contacts for optimal signal integrity. These versatile connectors come with black glass-filled polyester insulators that are UL and CSA certified, suitable for a wide temperature range of -55°C to 125°C. Designed with optional locking features, they ensure secure connections in demanding industrial environments. Compatible with numerous Samtec series, these headers deliver durability, reliability, and ease of installation, making them the ideal choice for signaling and power distribution in electronic devices.
Get Samtec TSW20224LS today—designed for robust industrial applications with reliable, gold-plated contacts.
