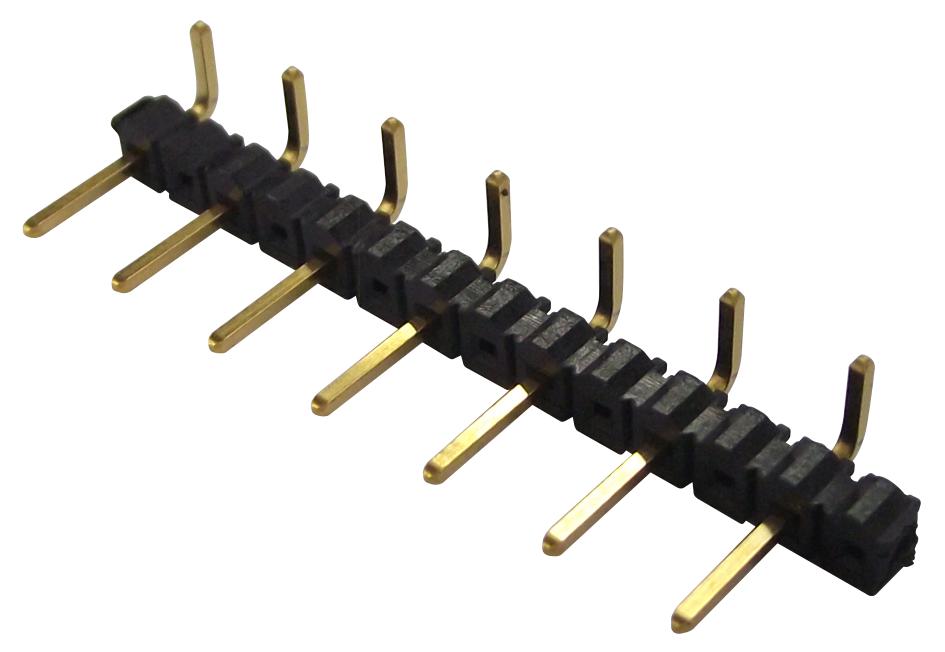

SAMTEC TSW20225GSRA terminal headers
The TSW series from Samtec includes unshrouded through-hole terminal strip headers with 0.025-inch (0.635mm) square posts, compatible with multiple Samtec series. These connectors come in various configurations such as single, dual, or triple-row, encompassing different pin counts, terminal lengths, and orientations. They deliver high signal integrity and operational reliability in temperature ranges from -55°C to 125°C. With gold-plated phosphor bronze contacts, black glass-filled polyester insulators, and meeting UL and CSA standards, they are suitable for demanding industrial and electronic applications requiring secure connections and durability.
SAMTEC TSW20225GSRA terminal headers Specifications:
- Insulator Material: TSW: Black Glass Filled Polyester, HTSW: Natural Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold over 1.27 μm Nickel
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: up to 550 VAC depending on configuration
- Pin Centers: 0.025 inches (0.635 mm)
- Number of Positions: varies per model, typically 2 to 25
- Orientation: Straight or Right Angle
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes for HTSW, No for TSW (Lead Wave Only)
- Certifications: UL Listed, CSA Certified
- Current Rating: approximately 5.2 A/6.3 A per pin depending on model
- Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Boxed styles and locking options available, with some non-standard lengths and styles
- Operational Use: High signal integrity, reliable electronic connections, industrial equipment
Buy the Samtec TSW Series - Reliable Terminal Headers for Industrial Applications
Secure your electronic and industrial projects with the Samtec TSW series terminal headers. Designed for high signal integrity, these connectors feature durable gold-plated phosphor bronze contacts, operating efficiently from -55°C to 125°C. They are available in various configurations, including straight and right-angle styles, with RoHS compliance and lead-free options. Ideal for reliable high-density connections, these headers meet UL and CSA standards, ensuring safety and performance in demanding industrial environments. Purchase online today to enhance your system’s reliability.
Buy Samtec TSW20225GSRA now and experience unmatched durability and electronic connection reliability for industrial and electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC TSW20225GSRA?
You can click on the BUY or RFQ button to purchase TSW20225GSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW20225GSRA?
You can download the TSW20225GSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW20225GSRA?
SAMTEC
