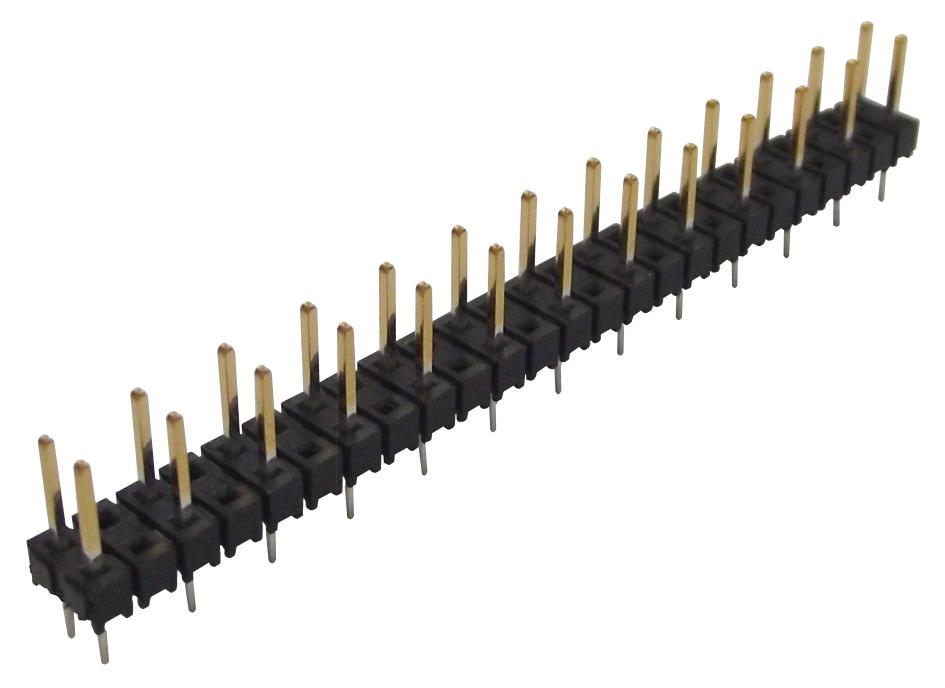

SAMTEC TSW20305TD Terminal Header
The TSW series from Samtec consists of standard unshrouded terminal strip headers designed for through-hole mounting. These connectors feature 0.025-inch (0.635mm) square posts and are compatible with various Samtec series connectors, including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. Available in single, dual, or triple row configurations with options for different pin counts and terminal lengths, they are ideal for applications requiring high signal integrity and reliability. The pitch spacing is 2.54mm, suited for 1 to 50 contacts per row, with a straight orientation. They operate within a temperature range of -55°C to 105°C, featuring phosphor bronze terminals, black glass-filled polyester insulators, and optional locking features. These connectors meet UL and CSA standards for safety and performance.
SAMTEC TSW20305TD Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 µ
- Ni
- Operating Temp Range: -55°C to +105°C
- Voltage Rating: Varies with mated series, up to 550 VAC
- Pitch: 2.54mm (0.100 inch)
- Contact Post Size: 0.025 inch (0.635 mm) square
- Configuration: Single, dual, or triple row
- Number of Contacts: 1 to 50 per row
- Mounting: Through-hole
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSW version), No (TSW version, lead wave only)
Buy the Samtec Series TSW Terminal Headers: TSW20305TD
Purchase the Samtec TSW20305TD terminal header online today and enjoy a reliable, high-quality connector designed for through-hole mounting with 2.54mm pitch, suitable for various applications. Crafted from durable materials like phosphor bronze terminals and black glass-filled polyester insulators, it ensures optimal performance from -55°C to 105°C. With compatibility across multiple Samtec series, it provides flexible configurations of single, dual, or triple rows with up to 50 contacts per row. Ideal for high signal integrity and safety standards, this connector is your perfect choice for professional electronic assemblies and systems.
Get Samtec TSW20305TD today—built for high signal integrity and long-lasting durability in electronic connection applications.
