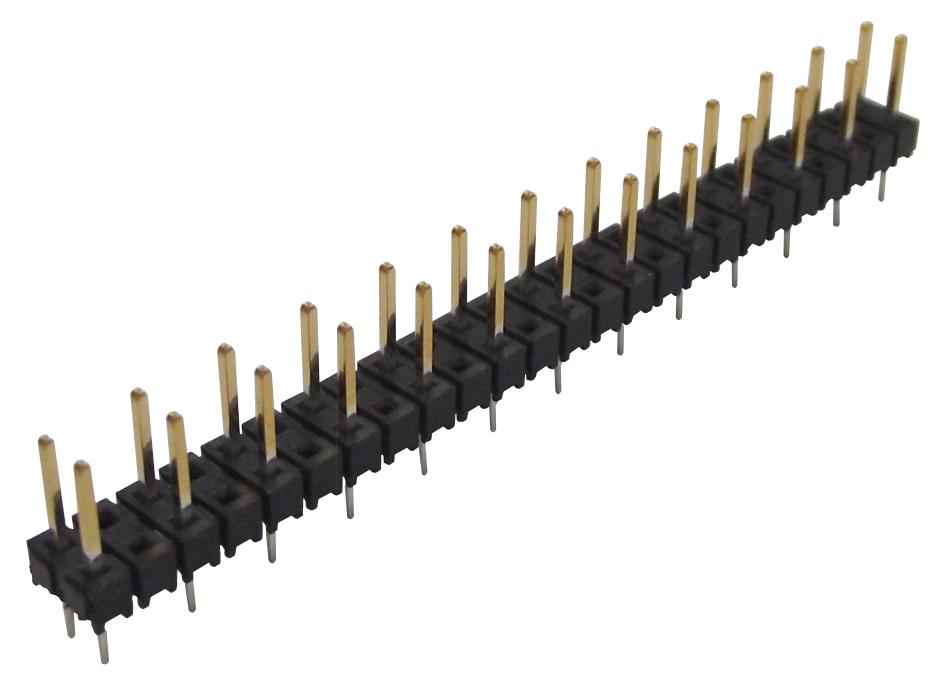

SAMTEC TSW20415GD Terminal Header
The TSW series from Samtec consists of unshrouded through-hole terminal strip headers with a 2.54mm pitch. Featuring 0.025-inch (0.635mm) square posts, these headers are compatible with Samtec connector series such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. They come in single, dual, or triple rows, with various terminal lengths and straight orientation. Made with phosphor bronze terminals plated with gold for signal reliability, housed in black glass-filled polyester insulators conforming to UL and CSA standards, operating from -55°C to 125°C, with optional locking features for secure, high-performance industrial connections.
SAMTEC TSW20415GD Terminal Header Specifications:
- Pitch: 2.54 mm
- Post Size: 0.025-inch (0.635mm) square
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- 2.54
- 0.025
- 0.635
- 0.635
- 0.125
- 125
- 105
- 550
- 500
- 450
- 400
- 0
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- 85
- 90
- UL, CSA, RoHS compliant
- Temperature Range: -55°C to +125°C; -55°C to +105°C (Tin plating)
- Operating Voltage: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with RAV-RE, 400 VAC with CES
- Material: Black glass-filled polyester insulators, Phosphor Bronze terminals
- Plating: Gold over 50 μ
- RoHS Compliance: Yes
- Lead-Free Solderability: HTSW yes, TSW no (lead wave only)
- Max Current per Pin: 5.2A/6.3A depending on configuration
