SAMTEC TSW20506TS Terminal Header
The TSW series from Samtec features unshrouded, through-hole terminal strip headers with a 2.54mm pitch, compatible with various Samtec connector series. These connectors are equipped with 0.025-inch square posts, suitable for high signal integrity applications. Available in single, dual, or triple row configurations, they can accommodate 1 to 50 contacts per row in straight layouts. Made with phosphor bronze terminals plated with matte tin, the black glass-filled polyester insulator ensures durability over -55°C to 105°C temperatures. Optional locking features enhance stability, and they comply with UL and CSA standards for reliable electrical connections.
SAMTEC TSW20506TS Terminal Header Specifications:
- Pitch: 2.54mm
- Post Size: 0.025-inch (0.635mm) square
- Contact Count: 1 to 50 contacts per row
- Configuration: Single, dual, or triple row (-S, -D, -T, -Q)
- Orientation: Straight
- Material: Phosphor bronze terminals
- Plating: Matte tin over 50 ut" (1.27 um) Ni
- Insulator Material: Black glass-filled polyester
- Operating Temperature Range: -55°C to 105°C
- Standards: UL E111594, CSA compliant
- Locking Features: Optional locking leads and clips
- Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS

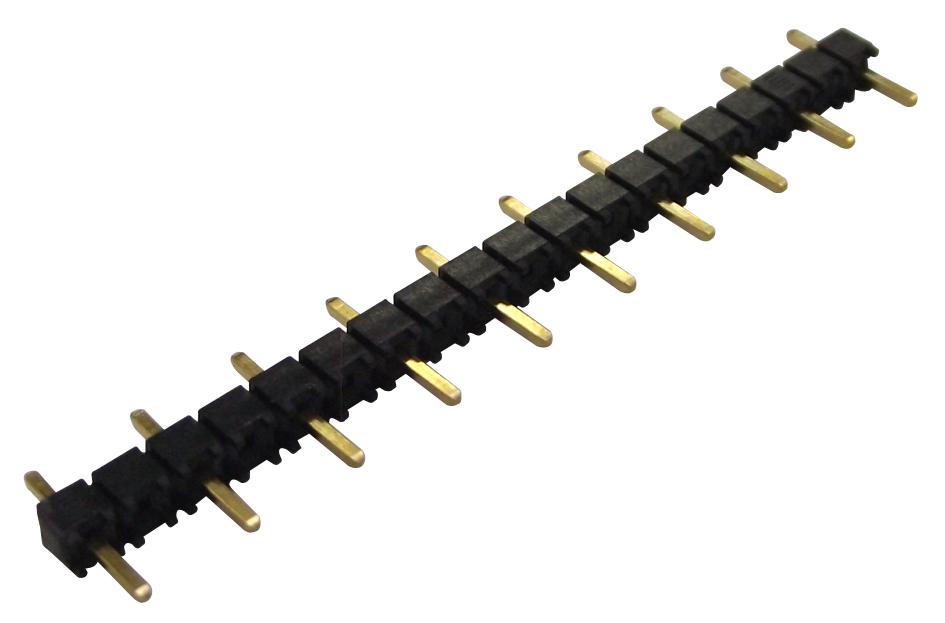

Buy the Buy Samtec TSW Series Part Number TSW20506TS Online
Purchase the Samtec TSW series terminal headers online to benefit from dependable high-quality connections for your electronic designs. These headers feature a 2.54mm pitch, square posts, and are available in various configurations suitable for many signal integrity applications. Made with durable phosphor bronze terminals and black glass-filled polyester insulators, they operate effectively from -55°C to 105°C. Optional locking features provide added stability. Shop now for fast, secure delivery and ensure your projects meet the highest standards of reliability and performance.
Order your Samtec TSW20506TS terminal header today and ensure high signal integrity for your electronic projects with reliable locking options.
