SAMTEC TSW20508LD Terminal Strip Header
The TSW series from Samtec features reliable unshrouded through-hole terminal strip headers with 2.54mm pitch. Made with phosphor bronze contacts and black glass-filled polyester insulators, these connectors include gold-plated contacts rated for temperatures from -55°C to 125°C. Compatible with multiple Samtec series, they are suitable for industrial signal connections and available in single, dual, or triple row configurations. They meet UL and CSA standards, with optional locking features for secure connections, ensuring dependable performance in demanding environments.
SAMTEC TSW20508LD Terminal Strip Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- Voltage Rating: 550 VAC mated with SSW; 500 VAC with BCS or ESQ; 450 VAC with BCS or SSM; 400 VAC with CES
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSW: Yes, TSW: No, Lead Wave Only)
- Current Rating (Per Pin): Up to 5.2 A with gold-plated versions, 2.2 A with tin plating
- Pin Centers: 2.54mm (0.100")
- Connection Style: Unshrouded through-hole headers, single, dual, or triple row configurations
- Compatibility: Compatible with series like SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Temperature Operating Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Dimensions and Spacing: 2.54mm pitch, posts are 0.635mm square, lengths vary depending on configuration, typically 4.0 mm or 6.08 mm center spacing.
- Additional Features: Optional locking, shunt options, and various length/styled options available.

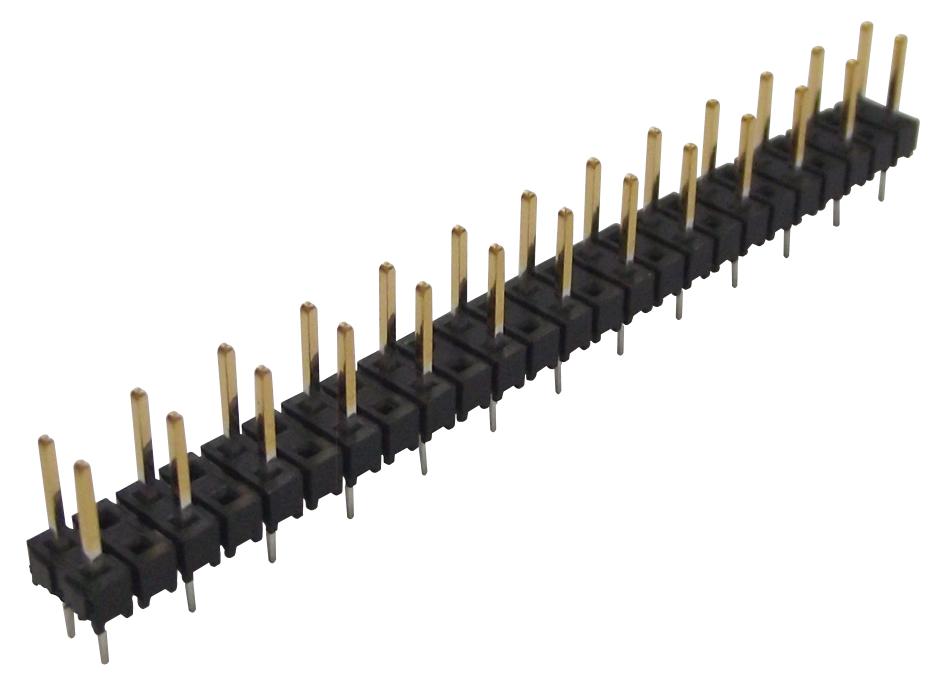

Buy the Buy Samtec TSW Series Connector Part Number TSW20508LD Online
