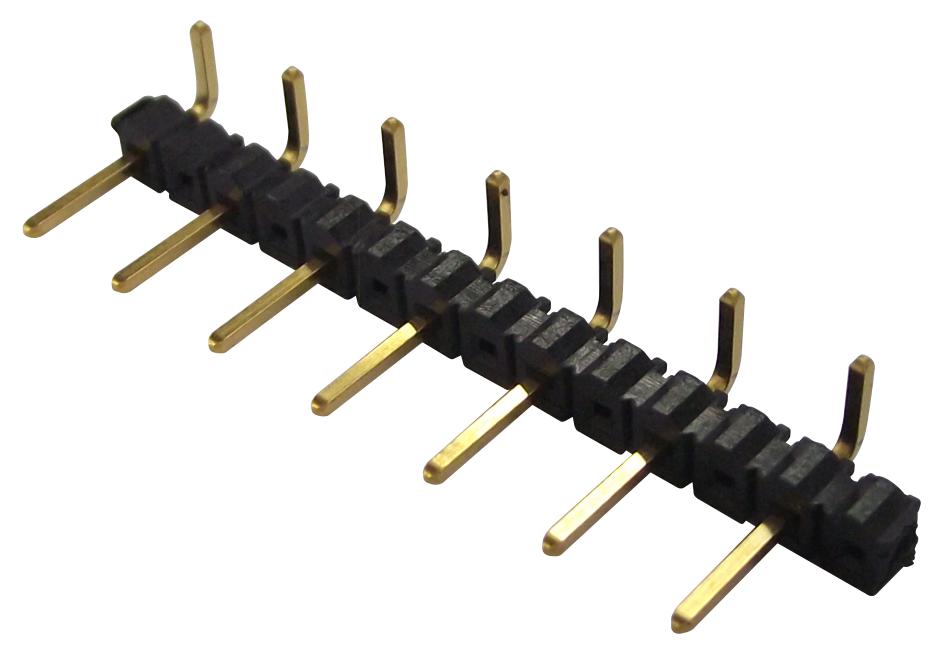

SAMTEC TSW20509GSRA High-Temperature Terminal Headers
The TSW series from Samtec offers high-temperature, reliable through-hole terminal strip headers with a 0.025 inch square post, available in single, dual, or triple row formats, and various pin counts. These headers feature a black glass-filled polyester insulator and phosphor bronze terminals plated with gold for optimal conductivity. Operating from -55°C to 125°C, they ensure dependable signal transmission in industrial environments. Compatible with multiple Samtec connector series, they include optional locking features and meet UL and CSA standards, making them ideal for demanding electronic and manufacturing applications.
SAMTEC TSW20509GSRA High-Temperature Terminal Headers Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- 1.27
- Operating Temperature Range: -55°C to +125°C (Gold plating), -55°C to +105°C (Tin plating)
- Voltage Rating: 550 VAC (mated with SSW), 500 VAC (mated with BCS or ESQ), 450 VAC (mated with BCS or SSM), 400 VAC (mated with CES)
- Pin Centers: 5.08 mm (0.200 inches)
- Contact Plating: Gold on post, tin on tail
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes for HTSW, No for TSW (Lead Wave Only)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Connector Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Presence of optional locking features and various style options
- Dimensions: Post size 0.025 inches (0.635 mm), Pitch spacing 5.08 mm, Pin counts vary, suitable for high-density applications
Buy the Samtec Series TSW: High-Temperature Through-Hole Headers 20509GSRA
Upgrade your electronic assemblies with the Samtec TSW20509GSRA high-temperature terminal headers. Designed for industrial environments, these headers feature gold-plated contacts, black glass-filled polyester insulators, and optional locking mechanisms to ensure secure connections. Perfect for reliable signal transmission from -55°C to 125°C, they are compatible with various Samtec connectors and meet strict UL and CSA standards. Shop online now to enhance the durability and performance of your electronic projects with these premium headers, ensuring seamless and long-lasting connections.
Get Samtec TSW20509GSRA today—built for high-temperature reliability and secure signal transmission in industrial applications.
