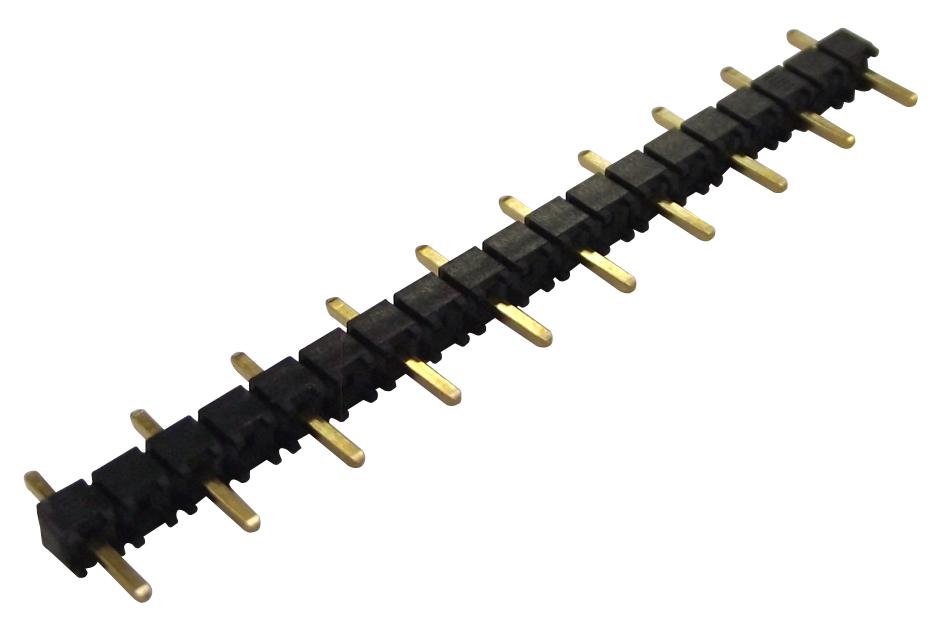

SAMTEC TSW20613GS Terminal Headers

The TSW series from Samtec features reliable terminal strip headers suitable for various industrial applications. These unshrouded, through-hole headers feature 0.025-inch (0.635 mm) square posts and are compatible with multiple Samtec connector series such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. They support single, dual, or triple row configurations with a pitch of 2.54 mm and from 1 to 50 contacts per row, with a straight orientation. Contacts are gold-plated, capable of operating from -55°C to 125°C, made from phosphor bronze with a black glass-filled polyester insulator, and meet UL and CSA standards. Optional locking features enhance secure and stable electrical connections, making them highly suitable for demanding industrial environments.

View TSW20613GSDatasheet [pdf]

Buy the Samtec Series TSW Terminal Connectors: TSW20613GS

Purchase the Samtec TSW20613GS terminal headers online today and ensure your industrial applications benefit from high-performance, secure connections. These headers feature a 2.54 mm pitch, gold-plated contacts for excellent electrical conductivity, and a robust black glass-filled polyester insulator. Compatible with a wide range of Samtec series, they support configurations from 1 to 50 contacts per row, offering flexibility for various designs. With optional locking features, they provide a stable, reliable connection in demanding conditions. Order now for fast delivery and quality assurance.

Buy Samtec TSW20613GS terminal headers now and experience reliable, high-quality industrial connections with secure locking features.
