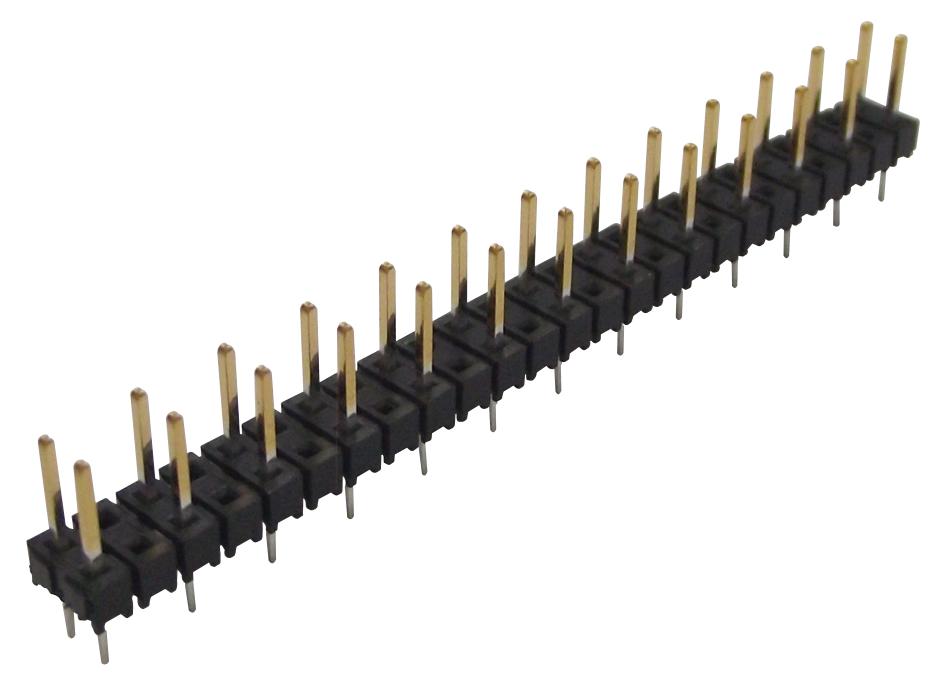

SAMTEC TSW20723LD Signal Header
The TSW series from Samtec are unshrouded through-hole terminal strip headers featuring a 2.54mm pitch and a 0.025" (0.635mm) square post. These connectors are compatible with various Samtec series like SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. Available in single, dual, or triple rows with optional locking features, they deliver signal integrity and reliability. The contacts are gold-plated phosphor bronze housed in a black glass-filled polyester insulator, supporting temperatures from -55°C to 125°C, and conforming to UL and CSA standards.
SAMTEC TSW20723LD Signal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 ut" Ni (1.27 um)
- Operating Temperature Range: -55°C to 125°C with Gold, -55°C to 105°C with Tin
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with RAV-RE, 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes with HTSW
- Pitch: 2.54mm
- Post Size: 0.025" (0.635mm) square
- Maximum Current per Pin: 5.2 A/6.3 A
- Number of Positions: Varies by model, minimum 4 pin
- Compatible Series: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Certifications: UL E111594, CSA 090871
Buy the Samtec TSW20723LD – Reliable Signal Header for Industrial Applications
Enhance your electronic assemblies with the Samtec TSW series signal headers, featuring 2.54mm pitch, gold-plated phosphor bronze contacts, and a robust polyester insulator. Ideal for industrial automation, these connectors support high operating temperatures up to 125°C and are RoHS compliant. Designed with optional locking features and compatibility with multiple Series like SSW, SSQ, and ESQ, they deliver reliable and precise signal connections. Purchase online now for fast delivery and quality assurance for your engineering needs.
Order your Samtec Series TSW20723LD today and ensure dependable, high-temperature signal connections for your industrial projects.
