SAMTEC TSW20809GS Terminal Header
The TSW series from Samtec includes unshrouded terminal strip headers with through-hole design, featuring a 2.54 mm pitch and a 0.025 inch (0.635 mm) square post. Compatible with multiple Samtec connector series like SSW, SSQ, and ESW, these headers are available in single, dual, and triple row configurations. They support high operating temperatures from -55°C to 125°C with gold or tin plating on phosphor bronze terminals. Made with black glass-filled polyester insulators, these headers ensure signal integrity, reliability, and durability for industrial applications, including options for locking features and compliance with UL and CSA standards.
SAMTEC TSW20809GS Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- 1.27
- 0.025
- 0.635
- 125
- -55
- 550
- 500
- 450
- 400
- 85
- 90
- 2.54
- 0.025
- 0.635
- 0.025
- 0.635
- 550
- 500
- 450
- 400
- -55
- 125
- 85
- 90
- UL, CSA compliant
- Operating Temperature Range: -55°C to +125°C (with gold), -55°C to +105°C (with tin)
- Voltage Rating: 550 VAC (mated with SSW), 500 VAC (with BCS or ESQ), 450 VAC (mated with BCS or SSM), 400 VAC
- Pitch: 2.54 mm (0.025 inch)
- Post Size: 0.025 inch (0.635 mm) square
- Configurations: Single, dual, triple rows
- RoHS Compliant: Yes
- Optional Features: Locking leads, clips, locking lead options
- Application: Industrial signal, power, reliability-critical uses

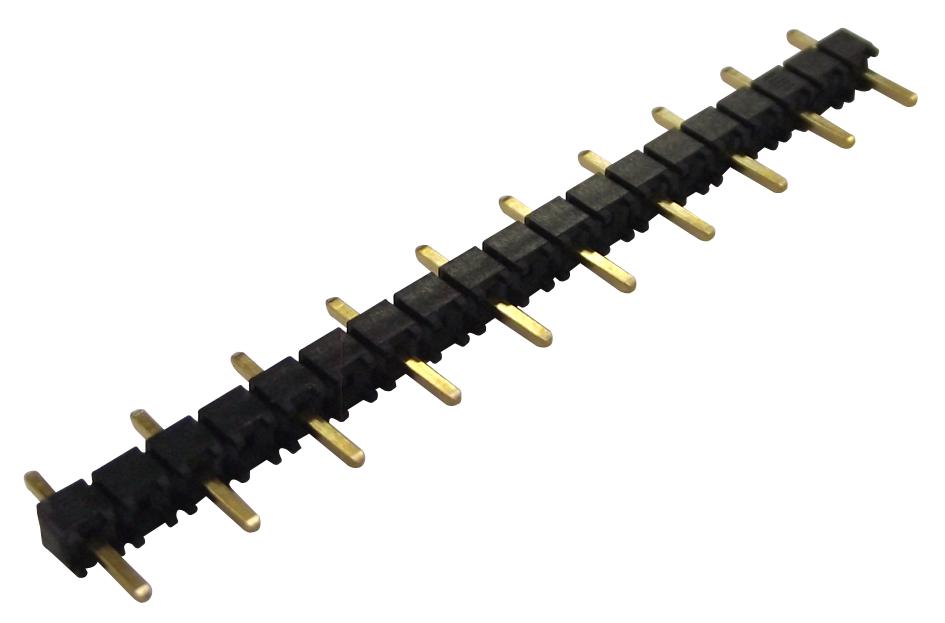

Buy the Buy Samtec TSW Series Part Number TSW20809GS Online
Purchase Samtec terminal headers online for reliable industrial signal and power connections. These high-quality headers feature gold or tin plating, operate from -55°C to 125°C, and come in versatile configurations with locking options. Crafted with durable black polyester insulators, they ensure signal integrity and resilience in demanding environments. Whether for manufacturing, repair, or upgrades, buying online guarantees quick delivery and authentic parts. Equip your projects with trusted connectors designed for maximum durability, compliant with UL and CSA standards, for dependable performance in critical industrial applications.
Get Samtec TSW20809GS today—built for precision and long-lasting durability in industrial applications.
