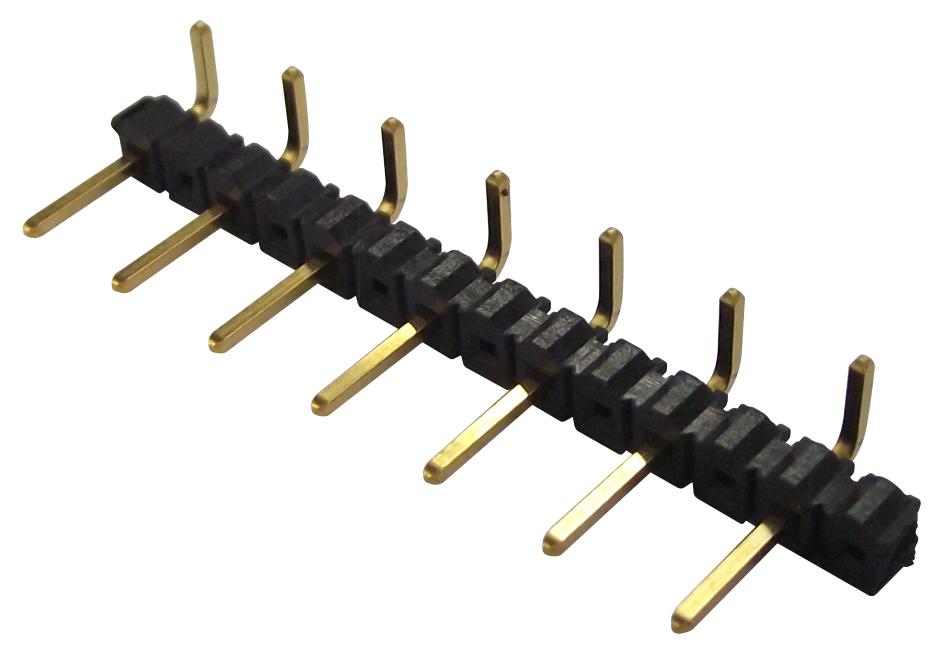

SAMTEC TSW20809TSRA terminal strip headers
The TSW series from Samtec features unshrouded through-hole terminal strip headers with 0.025-inch (0.635 mm) square posts, offering reliable connections in industrial settings. Compatible with various Samtec series, including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, these connectors provide configurations with single, double, or triple rows, different pin counts, and terminal lengths. They operate within a temperature range of -55°C to 105°C, with matte tin or gold plating on phosphor bronze terminals housed in a black glass-filled polyester insulator, meeting RoHS, UL, and CSA standards. Optional locking features enhance security, making them suitable for signal integrity and dependable industrial connections.
SAMTEC TSW20809TSRA terminal strip headers Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Tin over 50 µ
- (1.27 µm) Ni or Gold on post
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderability: HTSW: Yes, TSW: No (Lead Wave Only)
- Pin Centers: 5.08 mm
- Configuration: Single, Double, or Triple Rows
- Compatibility: Compatible with Samtec series SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Mounting Style: Through-hole
- Operating Temperature Range: -55°C to 105°C or 125°C depending on plating
- RoHS and UL/CSA Compliant
Buy the Samtec TSW Series Unshrouded Terminal Headers – Reliable Connectors for Industrial Applications
Purchase the Samtec TSW series terminal strip headers online today to benefit from high-quality industrial connectors that ensure reliable signal integrity. These headers feature a 5.08 mm pitch and are compatible with multiple series, offering configurations in single, double, or triple rows, with options for gold or tin plating, and optional locking features for added security. Ideal for industrial applications requiring robust connectivity, these connectors meet RoHS, UL, and CSA standards, simplifying procurement and integration for your projects.
Order your Samtec TSW20809TSRA series connector today and ensure reliable, secure connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC TSW20809TSRA?
You can click on the BUY or RFQ button to purchase TSW20809TSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW20809TSRA?
You can download the TSW20809TSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW20809TSRA?
SAMTEC
