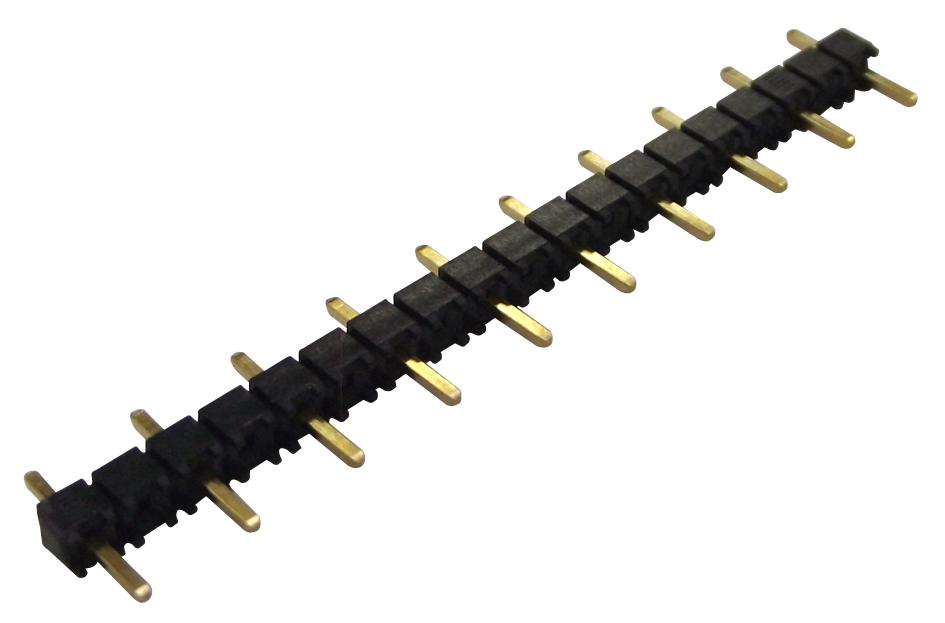

SAMTEC TSW21424GS Terminal Header
The TSW series from Samtec offers reliable terminal strip headers suitable for through-hole mounting in industrial applications. These unshrouded headers feature 0.025-inch posts and are compatible with various Samtec connector series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. Available in single, dual, or triple row configurations with 2.54 mm pitch, they operate within -55°C to 125°C. Made of black glass-filled polyester with phosphor bronze contacts plated in gold, these connectors ensure signal integrity and adhere to UL and CSA standards.
SAMTEC TSW21424GS Terminal Header Specifications:
- Post Size: 0.025-inch (0.635 mm) square posts
- Material: Black Glass Filled Polyester insulator
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 µ
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC with SSW; 500 VAC with SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS; 450 VAC with RAV-RE; 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes with HTSW; No with TSW, only lead wave soldering
- Current Rating: Up to 5.2 A per pin depending on style and size
- Operating Temperature: -55°C to +125°C (Gold plated), -55°C to +105°C (Tin plated)
- Pitch Spacing: 2.54 mm (0.100 inches)
- Number of Positions: 4 to 25 positions depending on model
- Connector Style: Unshrouded, with optional locking clips and shunts
- Style Options: Straight and right-angle versions available
- RoHS and compliance standards: RoHS compliant, UL, CSA, and other industry standards
Buy the Samtec Series TSW Terminal Headers: TSW21424GS
Purchase the Samtec TSW21424GS terminal header online today for high-quality, durable connections in industrial equipment. These headers feature 2.54 mm pitch spacing, gold-plated contacts, and operate efficiently within -55°C to 125°C temperature range. Made of black glass-filled polyester, they are compatible with multiple Samtec connector series. Suitable for through-hole mounting, they include optional locking clips for added security and meet UL and CSA standards, ensuring reliability in diverse electrical and signal integrity applications.
Get Samtec TSW21424GS today—built for industrial reliability and signal integrity.
