SAMTEC TSW21425TSRA Terminal Header
The TSW series from Samtec are high-quality, unshrouded terminal strip headers designed for through-hole mounting. Featuring 0.025 inch (0.635 mm) square posts, these connectors support multiple configurations including single, dual, and triple rows, with various pin counts and terminal lengths. They have a 5.08 mm pitch spacing and options for right-angle orientation, ensuring high signal integrity. Made with phosphor bronze terminals and black glass-filled polyester insulators, these connectors operate reliably from -55°C to 105°C, are RoHS compliant, and optionally include locking features for added security.
SAMTEC TSW21425TSRA Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC mated with SSW; 500 VAC with BCS or ESQ; 450 VAC RoHS compliant, Lead-Free solderable with HTSW; 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes with HTSW, No with TSW (Lead wave only)
- Pin Centers: 2.54 mm (0.100 inch), 5.08 mm (0.200 inch)
- Current Rating: Up to 5.2 A per pin depending on configuration
- Temperature Range: -55°C to +125°C depending on plating
- Plating: Gold over 50 μ
- Various configurations supported including right-angle and straight orientations, with optional locking features for security
- Certifications: RoHS compliant
- Compatibility: Supports multiple Samtec series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Construction: Phosphor bronze terminals, insulators of black glass-filled polyester or natural liquid crystal polymer
- Application: High signal integrity, reliable through-hole connections for electronic assemblies

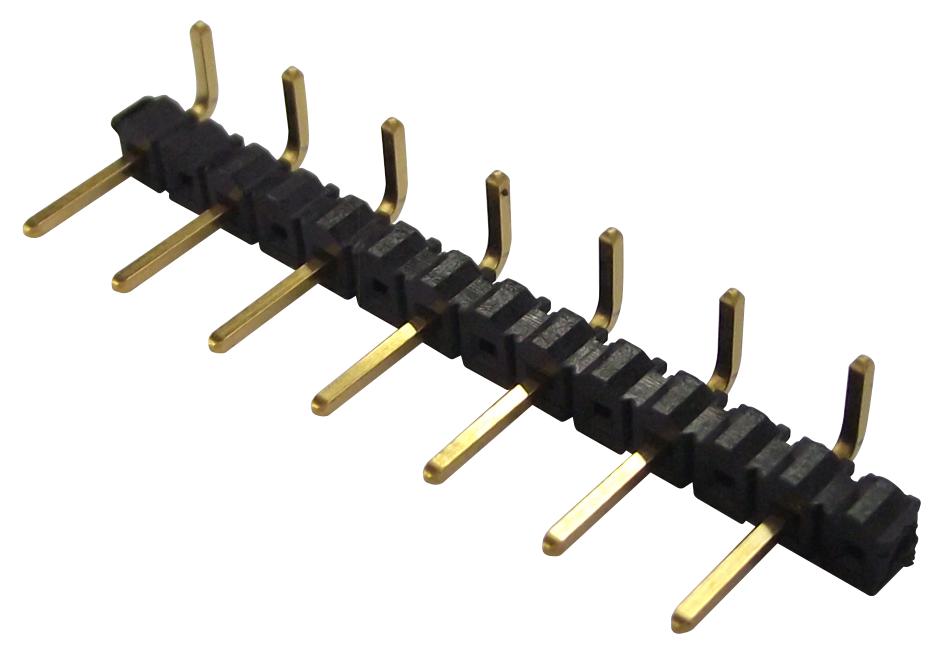

Buy the Buy Samtec TSW Series Part Number TSW21425TSRA Online
Order the Samtec TSW terminal header series online now for high-performance, reliable through-hole mounting connectors. Featuring 0.025 inch square posts, these headers support various configurations including single, dual, and triple rows with different pin counts and terminal lengths. Crafted from phosphor bronze and insulated with durable black glass-filled polyester, they operate seamlessly from -55°C to 105°C or 125°C with gold plating. RoHS compliant, these connectors ensure high signal integrity for electronic systems, with optional locking features for added security and stability during assembly. Perfect for demanding electronic applications requiring dependable, high-quality connections.
Get Samtec TSW21425TSRA today—built for high signal integrity and reliable through-hole connections.
Frequently Asked Questions
Where can I buy SAMTEC TSW21425TSRA?
You can click on the BUY or RFQ button to purchase TSW21425TSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW21425TSRA?
You can download the TSW21425TSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW21425TSRA?
SAMTEC
