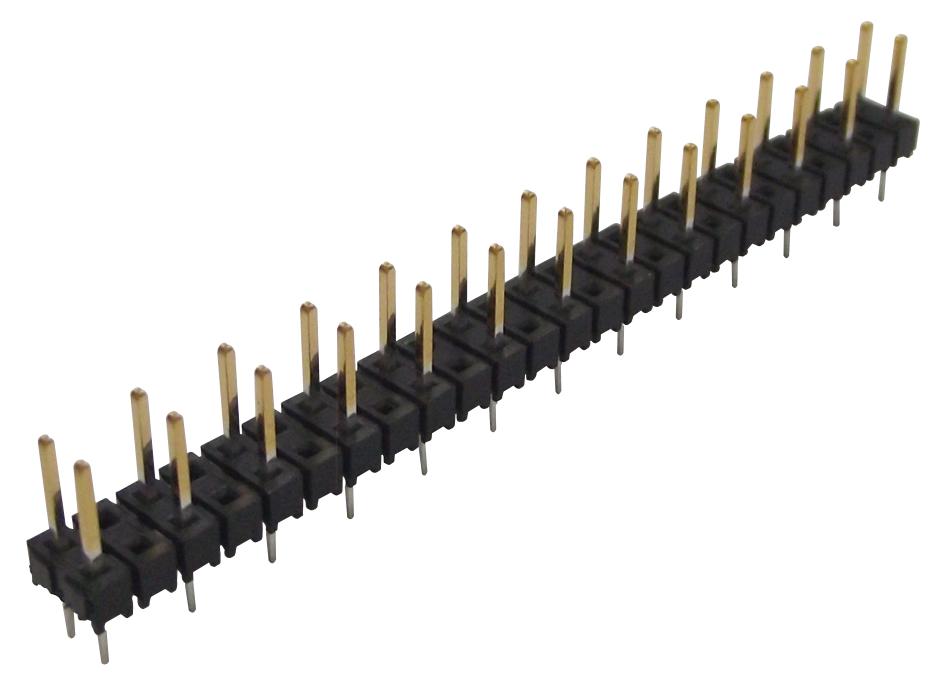

SAMTEC TSW22508GD Terminal Header
The TSW series from Samtec features unshrouded, through-hole terminal strip headers with a 2.54mm pitch spacing. Equipped with 0.025 inch square posts, these headers are compatible with various Samtec connectors such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS. Available in single, dual, or triple-row configurations with customizable pin counts, they ensure signal integrity and reliable connections. The contacts are gold-plated, and the insulator is made of black glass-filled polyester. Operating in temperatures from -55°C to 125°C, they meet UL and CSA standards, with optional locking features for secure assembly.
SAMTEC TSW22508GD Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 1.27 μm Ni
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- Pin Center Distance: 2.54mm (0.100 inches)
- Post Size: 0.025 inch (0.635mm) square
- Certifications: UL Listed, CSA Certified
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (HTSW only), No (TSW, lead wave only)
- Max Current per Pin: 5.2A/6.3A depending on configuration
- Contact Material: Phosphor Bronze
- Connector Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Connection Style: Unshrouded, through-hole, with optional locking features
- Customizable pin counts and terminal lengths available
Buy the Samtec Series TSW Terminal Headers: TSW22508GD
Order the Samtec TSW22508GD terminal headers online today to benefit from high-quality, reliable connections suitable for demanding electronic applications. Featuring a 2.54mm pitch, these headers are perfect for precise signal routing and dependable electrical contact in various industrial and electronic assemblies. With gold-plated contacts, a durable black polyester insulator, optional locking features, and compliance with UL and CSA standards, they ensure safety and longevity. Purchase now to integrate these versatile headers into your projects effortlessly and ensure your equipment’s optimal performance.
Buy Samtec TSW22508GD now and experience unmatched reliability and performance with high-quality connector headers designed for superior signal integrity.
Frequently Asked Questions
Where can I buy SAMTEC TSW22508GD?
You can click on the BUY or RFQ button to purchase TSW22508GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSW22508GD?
You can download the TSW22508GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSW22508GD?
SAMTEC
