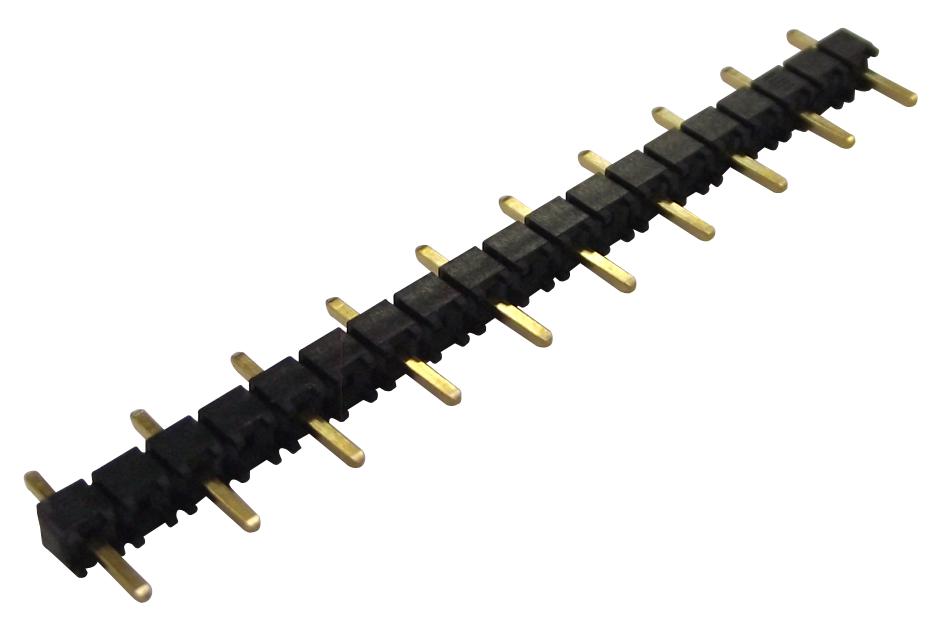

SAMTEC TSW22515TS Terminal Header
The TSW series from Samtec offers unshrouded through-hole terminal strip headers with 0.025-inch (0.635mm) square posts, designed for high reliability and signal integrity. Compatible with multiple Samtec series including SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, these headers feature industry-standard 2.54mm pitch spacing, supporting 1 to 50 contacts per row. Made with phosphor bronze contacts and durable black glass-filled polyester insulators, they operate from -55°C to +105°C, meeting UL and CSA standards, and support optional locking accessories for secure connections.
SAMTEC TSW22515TS Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Matte Tin over 50 µ
- (1.27 µ
- Ni
- Operating Temp Range: -55°C to +105°C
- Voltage Rating: 550 VAC mated with SSW; 500 VAC with BCS or ESQ; 450 VAC -RAV-RE mated with BCS or SSM; 400 VAC mated with CES
- Pitch Spacing: 2.54 mm
- Contact Size: 0.025 inch (0.635 mm) square posts
- Number of Contacts per Row: 1 to 50
- Supported Series: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Orientation: Straight
- Standards Compliance: UL E111594, CSA 090871
- Temperature Range: -55°C to +105°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes with HTSW; No with TSW
Buy the Samtec Series TSW Terminal Headers: TSW22515TS
Order the Samtec TSW22515TS terminal header today online to enjoy high-quality, reliable connections suitable for industrial and electronics applications. Featuring a 2.54mm pitch, these headers support up to 50 contacts per row and are made with durable phosphor bronze with tin plating for excellent corrosion resistance. Designed for operational temperatures from -55°C to +105°C, they meet UL and CSA standards. With optional locking features, these headers ensure secure connections, making them the ideal choice for high-reliability signal transfer in demanding environments.
Get Samtec TSW22515TS today—built for high signal integrity and durable industrial wiring applications.
