SAMTEC TSW22516TS Terminal Header
The TSW series from Samtec is a range of unshrouded through-hole terminal strip headers designed for high-density electrical connections. Featuring 0.025 inch (0.635 mm) square posts and compatibility with various Samtec connector series like SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, these headers are versatile for multiple configurations including single, dual, or triple-row arrangements with optional locking features. They are constructed with phosphor bronze terminals and black glass-filled polyester insulators, operating reliably from -55°C to 105°C, ensuring durability in demanding environments for industrial and electronic applications.
SAMTEC TSW22516TS Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- Temperature Rating: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Voltage Rating: 550 VAC (with SSW), 500 VAC (with BCS or ESQ), 450 VAC (with BCS or SSM), 400 VAC (with CES)
- Pin Pitch: 2.54 mm (0.100 inch)
- Compatible Series: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Current Rating: Varies per pin and configuration, up to 5.2 A per pin
- Operating Temperature Range: -55°C to +105°C or +125°C depending on plating
- Configurations: Single, dual, triple rows, optional locking features
- Construction: Unshrouded through-hole
- Certifications: UL, CSA Compliant
- Pitch Spacing: 2.54 mm (0.100 inch)
- Connector profiles include straight and right-angle options

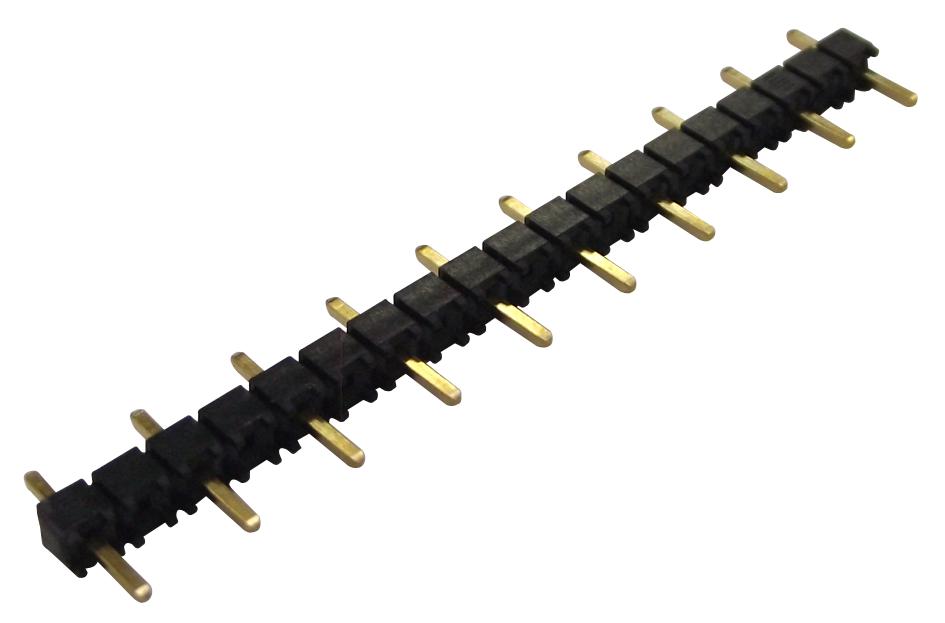

Buy the Buy Samtec TSW Series Part Number TSW22516TS Online
