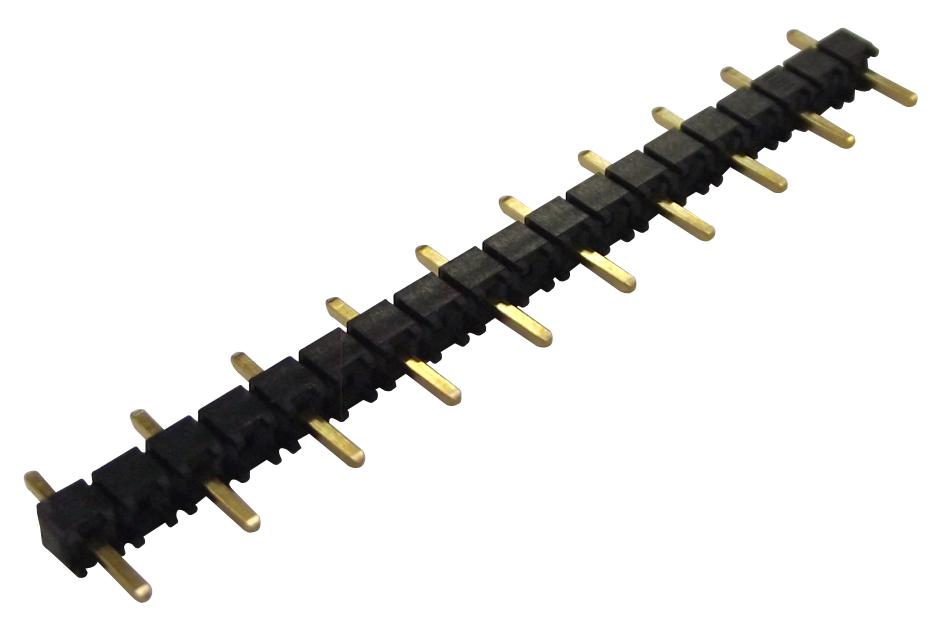

SAMTEC TSW22518GS Terminal Header
The TSW series from Samtec are unshrouded, through-hole terminal strip headers with a 2.54mm pitch spacing, featuring 0.025 inch (0.635mm) square posts. Designed for reliable connections with multiple Samtec series, these headers come in single, dual, or triple row configurations, with various pin counts and terminal lengths. They offer high temperature ratings from -55°C to 125°C, gold-plated contacts, phosphor bronze terminals, and black glass-filled polyester insulators. Fully compliant with UL and CSA standards, optional locking features enhance connection security, making them ideal for signal integrity applications.
SAMTEC TSW22518GS Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 μ
- Operating Temp Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Voltage Rating: 550 VAC mated with SSW; 500 VAC with BCS or ESQ; 450 VAC with BCS or SSM; 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: HTSW yes, TSW no (lead wave only)
- Pin Centers: 2.54mm (0.100 inch)
- Configuration: Single, dual, or triple row, various pin counts
- Contact Material: Phosphor Bronze
- Contact Plating: Gold or tin options
- Maximum Current per Pin: 5.2 A/6.3 A depending on model
- Temperature Range: -55°C to +125°C for gold-plated contacts
- Connector Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Additional Features: Optional locking, high-temperature rated
