SAMTEC UMPS02055GVTSMWTK Power and Signal Connector
The Samtec UMPS and UMPT Series provide versatile power and signal connection options, with current ratings up to 15A per blade, supporting stack heights from 5mm to 20mm. Made with black LCP insulator and copper contact material, these components feature optional gold or tin plating over nickel for enhanced performance. They are RoHS compliant and lead-free, suitable for high-temperature environments up to 125°C with gold. The series includes optional weld tabs for secure mounting and is compatible with various high-speed connector systems for industrial or power management applications. Easy to assemble with available stacking options.
SAMTEC UMPS02055GVTSMWTK Power and Signal Connector Specifications:
- Insulator Material: Black LCP
- Contact Material: Copper Alloy
- Plating: Sn or Au over 50 p" (1.27 um) Ni
- Operating Temp Range: -55 °C to +105 °C with Tin, -55 °C to +125 °C with Gold
- Voltage Rating: 460 VAC / 650 VDC
- Current Rating: Up to 15A per blade, derated based on 70°C ambient temperature
- Stack Heights: 5mm, 7mm, 10mm, 12mm, and other options available
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Optional Weld Tab: Yes
- Compatibility: High-speed connectors, power and signal interconnects
- Design: Two-piece system supporting multi-blade power and signal applications
- Application: Industrial, power management, signal processing
- Temperature Tolerance: Up to 125°C with gold plating

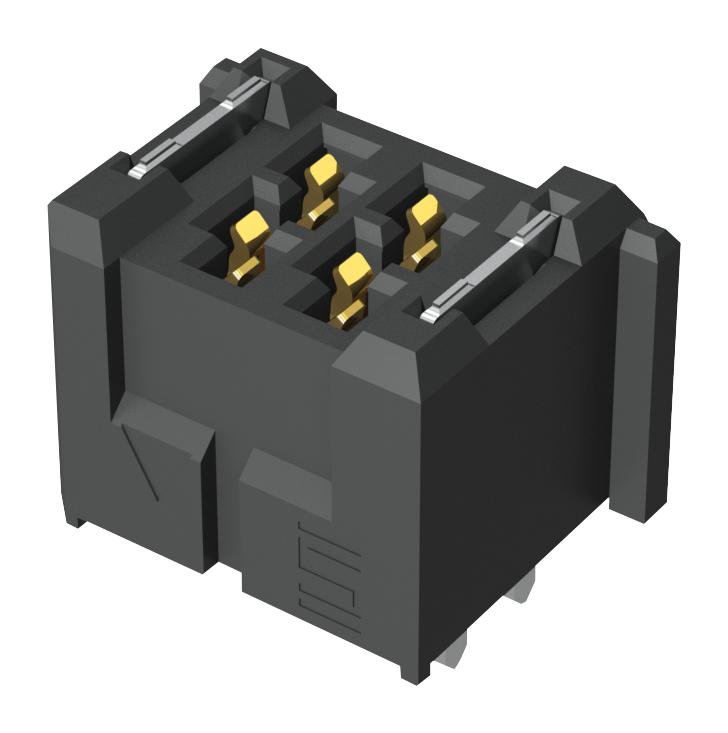

Buy the Buy Samtec UMPS Series Power and Signal Connector Part Number UMPS02055GVTSMWTK Online
Enhance your project with the Samtec UMPS Series power and signal connectors. Designed for high current and versatile stacking options, these RoHS-compliant components feature durable materials and optional plating for improved performance. Compatible with high-speed systems, they support up to 15A per blade, with stack heights from 5mm to 20mm to suit various designs. Easy to install and suitable for industrial, power, and signal applications, these connectors ensure reliable and efficient connections for your critical systems. Purchase online now for fast delivery and quality assurance.
Order your Samtec Series UMPS02055GVTSMWTK today and secure a reliable, high-current connection for your industrial and power management needs.
Frequently Asked Questions
Where can I buy SAMTEC UMPS02055GVTSMWTK?
You can click on the BUY or RFQ button to purchase UMPS02055GVTSMWTK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part UMPS02055GVTSMWTK?
You can download the UMPS02055GVTSMWTK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of UMPS02055GVTSMWTK?
SAMTEC
