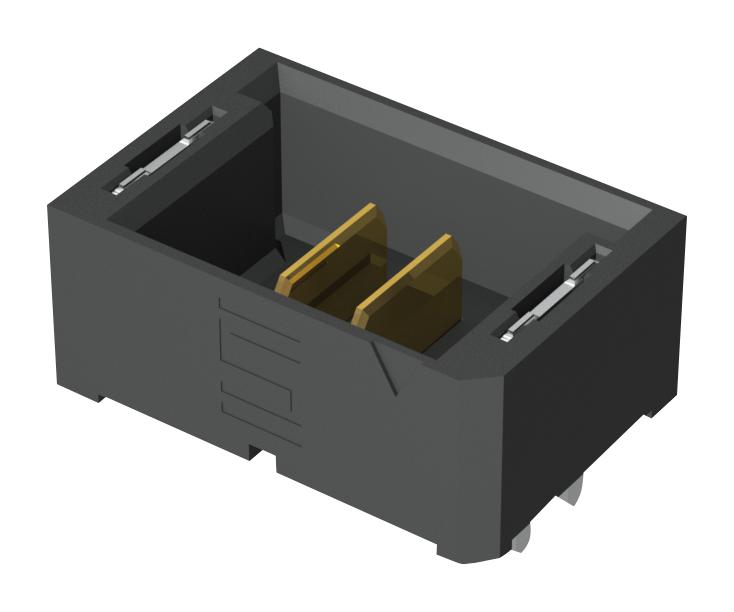

SAMTEC UMPT02015GVTSMWTK Power Signal Connector
The Samtec UMPS and UMPT series provide flexible solutions for power and combined power-signal applications, supporting up to 15A per blade. These connectors feature various stack heights from 5mm to 20mm and are compatible with high-speed systems, making them suitable for industrial, power management, and signal processing uses. They include options like weld tabs, RoHS compliance, and lead-free solderability, ensuring safety and durability in demanding environments. Designed for efficient power distribution and signal integrity, these connectors meet modern electronic system requirements.
SAMTEC UMPT02015GVTSMWTK Power Signal Connector Specifications:
- Maximum current per blade: 15A
- Stack height options: 5mm, 10mm, 12mm, 15mm, 20mm
- Operating temperature range: -55°C to +125°C (with gold plating)
- Voltage rating: 460 VAC/650 VDC
- Contact material: Copper alloy with Sn or Au over Ni plating
- Insulator Material: Black LCP
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Wire Range: Suitable for power and signal applications
- Dimensions: Vary by configuration, with multiple options for height and pitch
- Features: Weld tabs, optional power positions, staging of power and signal/ground
- Certifications: RoHS compliant
Buy the Samtec Series UMPT Power Connectors: UMPT02015GVTSMWTK
Purchase the Samtec UMPT power and signal connector series online for reliable, high-performance connectivity solutions. Ideal for industrial, power management, and signal processing applications, these connectors support up to 15A per blade and feature stack heights from 5mm to 20mm. Crafted with durable materials like copper alloy and RoHS compliant plating, they ensure safety and longevity. Easy to solder, with optional weld tabs, they facilitate flexible configurations for staging power and signals. Secure your system with these versatile, high-quality connectors today.
Get Samtec UMPT02015GVTSMWTK today—built for precision, long-lasting durability, and flexible power-signal integration.
Frequently Asked Questions
Where can I buy SAMTEC UMPT02015GVTSMWTK?
You can click on the BUY or RFQ button to purchase UMPT02015GVTSMWTK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part UMPT02015GVTSMWTK?
You can download the UMPT02015GVTSMWTK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of UMPT02015GVTSMWTK?
SAMTEC
