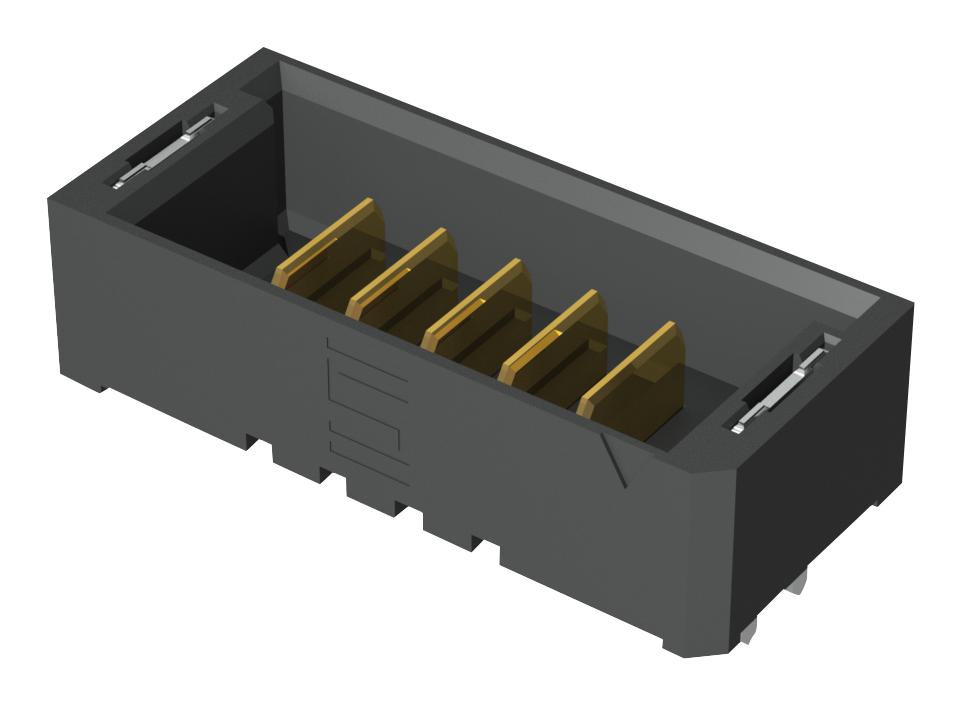

SAMTEC UMPT05015GVTSMWTK Power Signal Connector
The Samtec UMPS and UMPT Series provide flexible, compact power and signal connectors designed for diverse industrial applications. Capable of handling up to 15A per blade with four blades, they support stack heights from 5mm to 20mm, allowing easy integration with high-speed connectors to create combined power and signal systems. These connectors are ideal for power management, signal processing, and automation systems, featuring RoHS compliance, lead-free solderability, and operating temperature ranges from -55°C to +125°C depending on the plating. Optional weld tabs and staging options enhance their versatility for various engineering needs.
SAMTEC UMPT05015GVTSMWTK Power Signal Connector Specifications:
- Material: Insulator made of Black LCP, Copper All contact material with Sn or Au over Ni plating
- Operating Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Voltage Rating: 460 VAC/650 VDC
- Current Rating: 15A per blade, 4 blades, derated 20% at 70°C ambient
- Stack Heights: 5mm, 7mm, 10mm, 12mm, 15mm, 20mm options
- Options include weld tabs and staging configurations
- RoHS Compliant, Lead-Free Solderable, Compact size for space-saving designs
- Connector finishes: Sn or Au over Ni, suitable for soldering or welding
- Dimensions vary by style and height, designed for high reliability and ease of assembly
- Suitable for industrial and power signal applications with temperature tolerance up to 125°C
Buy the Samtec UMPT – Reliable Power Signal Connectors for Industrial Applications
Purchase the Samtec Power Signal Connector online today and ensure reliable, high-performance power and signal management for your industrial, automation, or power systems. Designed for flexibility, these connectors offer a versatile solution with stack height options from 5mm to 20mm, capable of handling up to 15A per blade. RoHS compliant and lead-free, they are suitable for demanding environments requiring stability up to 125°C. Easy to solder or weld, these connectors enhance your project’s reliability and efficiency with quick online procurement.
Order your Samtec Series UMPT05015GVTSMWTK today and enhance your industrial power and signal management with dependable connectors.
Frequently Asked Questions
Where can I buy SAMTEC UMPT05015GVTSMWTK?
You can click on the BUY or RFQ button to purchase UMPT05015GVTSMWTK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part UMPT05015GVTSMWTK?
You can download the UMPT05015GVTSMWTK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of UMPT05015GVTSMWTK?
SAMTEC
