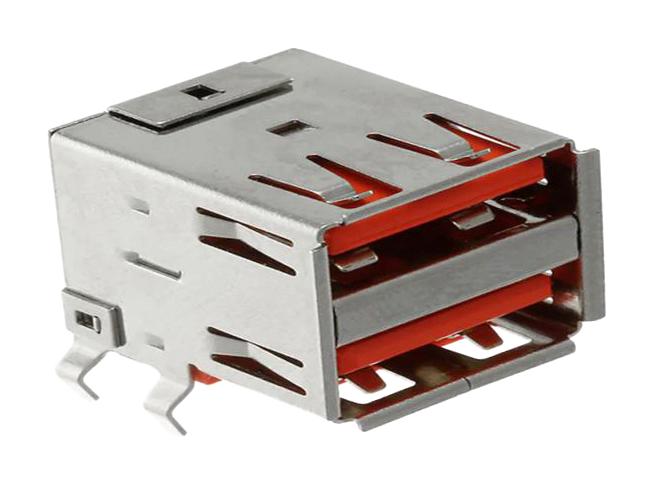

SAMTEC USBRADSOTH Industrial USB Connector
This rugged and reliable USB 2.0 connector series features USB-A and USB-AM types, designed for industrial applications. Made with high-temperature thermoplastic insulation and phosphor bronze contacts with gold flash plating for enhanced durability and electrical performance. Suitable for surface mount and through-hole mounting, these connectors support operating temperatures from -55°C to +85°C, with a voltage rating of up to 1500 V. Packaged in bulk or automation-friendly trays, they offer high retention force and are lead-free, ensuring compliance with environmental standards. Ideal for demanding industrial environments requiring secure, long-lasting connections.
SAMTEC USBRADSOTH Industrial USB Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Gold flash on mating area, Tin on tails, Nickel on shell
- Insulator Material: High-temperature thermoplastic
- Operating Temp Range: -55°C to +85°C
- Voltage Rating: Up to 1500 V
- Mounting Options: Surface mount and through-hole
- Packaging: Bulk or automation trays, lead-free solderable (wave solder only)
- Retention: Approximate withdrawal force of 15 N
- Maximum testing current: 30 pF (0.76 μm)
- Certification: Compliant with environmental standards
Buy the Samtec USBRADSOTH – Reliable USB 2.0 Connectors for Industrial Applications
Purchase these high-quality rugged USB 2.0 connectors online to ensure reliable, secure connections in industrial environments. Featuring gold flash contacts and a temperature range from -55°C to +85°C, these connectors support surface mount and through-hole mounting options. Packaged in bulk or tray formats for easy automation, they are lead-free and compliant with environmental standards. Built with high-temperature thermoplastic insulation and phosphor bronze contacts, they guarantee long-lasting durability and excellent electrical performance for rigorous industrial applications.
Get Samtec USBRADSOTH today—designed for durability and secure industrial connectivity.
Frequently Asked Questions
Where can I buy SAMTEC USBRADSOTH?
You can click on the BUY or RFQ button to purchase USBRADSOTH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part USBRADSOTH?
You can download the USBRADSOTH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of USBRADSOTH?
SAMTEC
