SAMTEC ZF5S1001TWT Connector Header
These are high-quality, SMT-compatible connector headers with natural LCP insulator material and phosphor bronze contacts plated with tin over Ni. Designed for reliable, rugged connections, they operate from -55°C to +105°C, supporting up to 1.8 A per pin. Suitable for vertical and other mating positions, they are RoHS compliant and lead-free. Available in various sizes and configurations, they ensure excellent coplanarity with a standard pitch of 0.50 mm, providing robust interconnections for PCB applications. Contact Samtec for complete specifications and PCB layout guidance.
SAMTEC ZF5S1001TWT Connector Header Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over Ni (50 p!m or 1.27 μm)
- Weld Tab Material: Phosphor Bronze
- Operating Temp Range: -55°C to +105°C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: Max 0.10 mm (0.004") for sizes 10-30, Max 0.15 mm (0.006") for sizes 40-50
- Pitch: 0.50 mm
- Number of Positions: Varies by configuration
- Mating Compatibility: FH series, other options available
- Designed for rugged PCB connections with weld tabs
- Sizes and options are non-standard and non-returnable

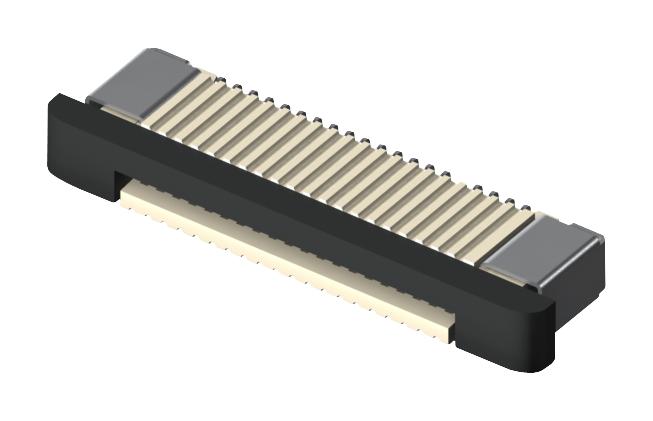

Buy the Samtec Series SMT Connector Headers: ZF5S-20-01-T-WT
Order the Samtec ZF5S-20-01-T-WT connector header online today for durable, high-performance PCB connections. Featuring natural LCP insulators and phosphor bronze contacts with tin over nickel plating, these connectors withstand temperatures from -55°C to +105°C and support up to 1.8 A per pin. Suitable for vertical and other mating orientations, they ensure robust soldering and coplanarity. Purchase now to benefit from RoHS compliance and lead-free construction, securing reliable electronic assembly for industrial, communication, and computing applications.
Buy Samtec ZF5S-20-01-T-WT now and experience unmatched reliability and performance for your PCB connection needs.
