SAMTEC ZF5S1002TWT Surface-Mount Connectors
The ZF5S-20-01-T-WT and ZF5S-40-01-T-WT are high-quality, surface-mount connectors designed for rugged board-to-board connections. Crafted with natural LCP insulators, phosphor bronze contacts, and Sn over Ni plating, they support operating temperatures from -55°C to +105°C and a current rating of 1.8 A per pin. These RoHS compliant, lead-free connectors offer precise coplanarity, multiple positions, and weld tabs for secure attachment, making them suitable for demanding electronic and industrial applications requiring reliable, high-performance connectivity.
SAMTEC ZF5S1002TWT Surface-Mount Connectors Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p!" (1.27 um) Ni
- Operating Temperature Range: -55°C to +105°C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: 0.10 mm max (10-30), 0.15 mm max (40-50) with stencil option
- Weld Tab: Phosphor Bronze for secure mounting
- Size and positions: Options for 2 to 4 positions with 0.50 mm pitch
- Suitable for rugged connection to PCB with weld tabs
- Designed for reliable internal and external electronic assemblies
- Complete specifications and PCB layout guidance available at samtec.com

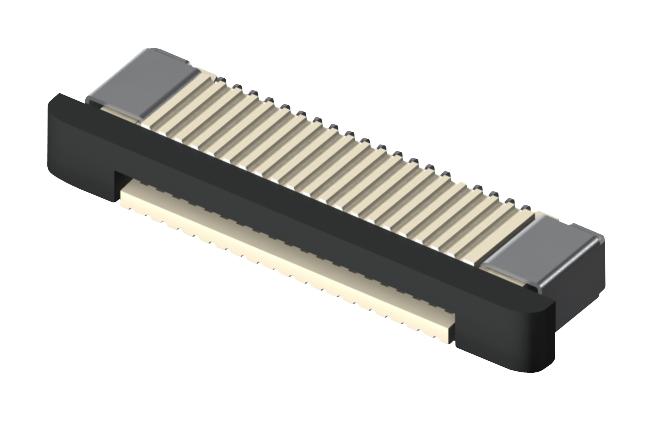

Buy the Samtec Series ZF5S Connectors: ZF5S-20-01-T-WT
Discover the reliable and high-quality surface-mount connectors designed for demanding electronic applications. The ZF5S Series features phosphor bronze contacts, natural LCP insulators, and robust weld tabs for secure, rugged connections. With operating temperatures from -55°C to +105°C and a current rating of 1.8 A per pin, these RoHS compliant, lead-free connectors ensure long-lasting performance. Order your Samtec ZF5S-20-01-T-WT today online and enhance your electronic assembly with trusted, precision-engineered components that guarantee excellent connectivity and durability.
Order your Samtec Series ZF5S-20-01-T-WT today and give your projects the dependable quality they deserve with high-performance, robust connectors.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S1002TWT?
You can click on the BUY or RFQ button to purchase ZF5S1002TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S1002TWT?
You can download the ZF5S1002TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S1002TWT?
SAMTEC
