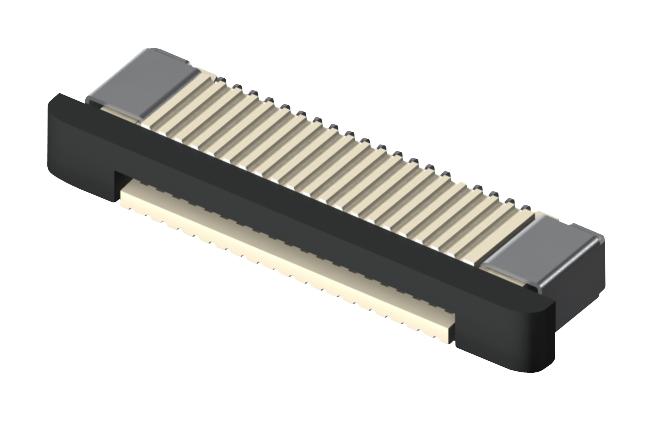

SAMTEC ZF5S1202TWT High-Rel PCB Connector
The ZF5S-20-01-T-WT and ZF5S-40-01-T-WT are high-reliability board-to-board connectors with natural LCP insulators and phosphor bronze contacts. They feature tin over nickel plating for corrosion resistance and are RoHS compliant and lead-free solderable. Designed for rugged connections with weld tabs, these connectors support a current rating of 1.8A per pin and operate within a temperature range of -55°C to +105°C. Suitable for surface-mount technology, they offer coplanarity within 0.10 mm, ensuring precise alignments for complex PCB assemblies.
SAMTEC ZF5S1202TWT High-Rel PCB Connector Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p! Ni (1.27 um)
- Weld Tab Material: Phosphor Bronze
- Operating Temp Range: -55°C to +105°C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (max), 0.15 mm (max for sizes 40-50)
- Number of Positions: Variable (2 to 50) with 0.50 mm pitch
- Design Positions: Top contact with rugged weld tabs forboard connection
- Part Numbers: ZF5S-20-01-T-WT, ZF5S-40-01-T-WT
Buy the Buy Samtec High-Rel PCB Connector Part Number ZF5S1202TWT Online
Secure your electronic projects with the Samtec High-Rel PCB Connector ZF5S1202TWT. Featuring natural LCP insulators, phosphor bronze contacts with tin over nickel plating, and a rugged weld tab design for reliable board connections, it supports up to 1.8A per pin within a temperature range of -55°C to +105°C. RoHS compliant and lead-free, its precise SMT coplanarity ensures high-quality, dependable solder joints, perfect for demanding manufacturing and electronic integration tasks. Buy online now for fast delivery and professional-grade performance.
Order your Samtec SeriesZF5S1202TWT connector today and ensure reliable, high-performance connections for your PCB assemblies.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S1202TWT?
You can click on the BUY or RFQ button to purchase ZF5S1202TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S1202TWT?
You can download the ZF5S1202TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S1202TWT?
SAMTEC
