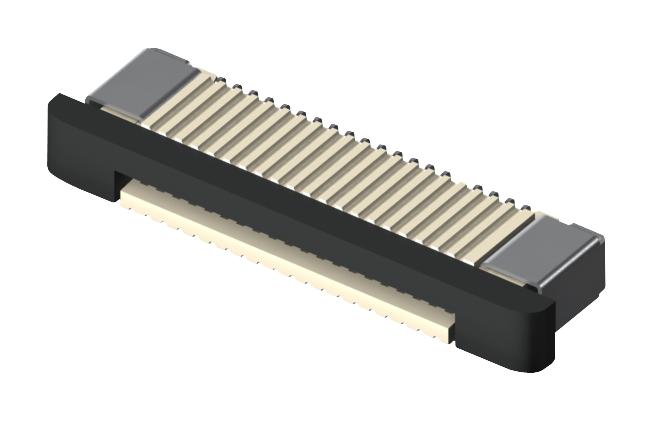

SAMTEC ZF5S2002TWT Board-to-Board Connector
The ZF5S-20-01-T-WT is a rugged, high-quality board-to-board connector featuring a natural LCP insulator and phosphor bronze contacts with Sn over Ni plating. It supports an operating temperature range of -55°C to +105°C and can carry up to 1.8 A per pin. Its vertical, SMT lead, coplanar design ensures可靠 connection for various electronic applications. Mates with FH series connectors, offering versatile options for high-density PCB connections in demanding environments.
SAMTEC ZF5S2002TWT Board-to-Board Connector Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p!m Ni
- Weld Tab: Phosphor Bronze
- Operating Temp Range: -55°C to +105°C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004") max for sizes 10-30, 0.15 mm (0.006") max for sizes 40-50
- Size Options: 1 to 50 positions with 0.50 mm pitch
- Connection Type: Vertical SMT with weld tabs for rugged connection
- Compatible with: FH series mating connector
Buy the Samtec Series PNET Connecting Parts: ZF5S-20-01-T-WT
Purchase the Samtec ZF5S-20-01-T-WT online today to ensure your electronic assemblies benefit from durable, high-performance board-to-board connections. Designed with natural LCP insulators, phosphor bronze contacts, and Sn over Ni plating, this connector supports operating temperatures from -55°C to +105°C and provides a current rating of 1.8 A per pin. Its vertical SMT design offers easy installation and ensures reliable connections suitable for demanding environments, making it the ideal choice for your high-density PCB needs.
Buy Samtec ZF5S-20-01-T-WT now and experience unmatched reliability and performance in high-density PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S2002TWT?
You can click on the BUY or RFQ button to purchase ZF5S2002TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S2002TWT?
You can download the ZF5S2002TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S2002TWT?
SAMTEC
