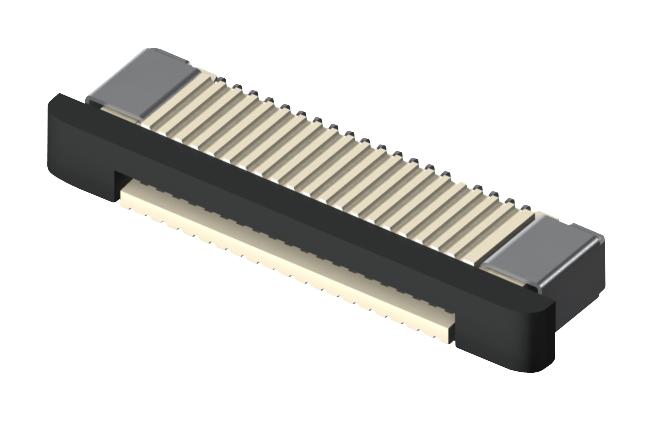

SAMTEC ZF5S2503TWT Board-to-Board Connector
This high-quality board-to-board connector features natural LCP insulator material and phosphor bronze contact material with Sn over Ni plating, ensuring reliable electrical connections in demanding environments. It supports a temperature range of -55°C to +105°C and has a current rating of 1.8 A per pin, making it suitable for various industrial and electronic applications. The connector is RoHS compliant, lead-free, and designed for SMT mounting with precise coplanarity requirements, providing rugged connections for durable system assembly with standard and optional configurations.
SAMTEC ZF5S2503TWT Board-to-Board Connector Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p! (1.27 um) Ni
- Weld Tab Material: Phosphor Bronze
- Operating Temperature Range: -55 °C to +105 °C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm max (10-30), 0.15 mm max (40-50)
- Designs and components are subject to change; custom options available
- Supports rugged, reliable connections for industrial electronics
Buy the Samtec ZF5S-20-01-T-WT – Reliable Connectors for Industrial Applications
Purchase the high-quality board-to-board connector from Samtec online today. This connector features natural LCP insulator, phosphor bronze contacts with tin over nickel plating, and supports a temperature range of -55°C to +105°C. With a current rating of 1.8 A per pin and RoHS compliance, it offers durability and reliable performance for industrial, electronic, and communication applications. Designed for SMT mounting with precise coplanarity, this rugged component ensures long-lasting, dependable electrical connections in demanding environments.
Order your Samtec Series ZF5S-20-01-T-WT today and give your projects the dependable quality they deserve, ensuring robust electrical connections for demanding environments.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S2503TWT?
You can click on the BUY or RFQ button to purchase ZF5S2503TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S2503TWT?
You can download the ZF5S2503TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S2503TWT?
SAMTEC
