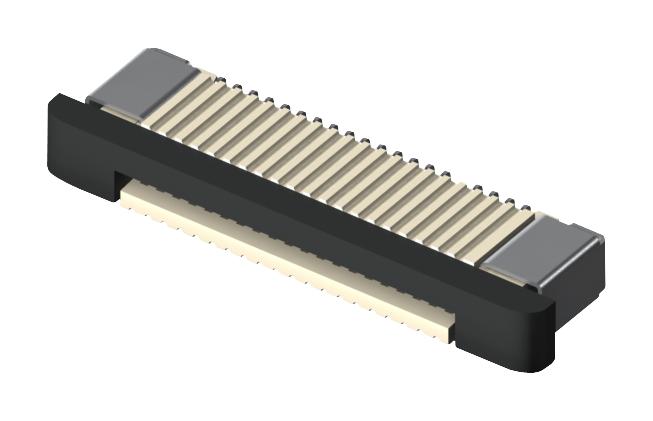

SAMTEC ZF5S3003TWT High-Performance SMT Connector
This high-quality SMT connector features natural LCP insulator material and phosphor bronze contact points with Sn over Ni plating for durability. Designed for rugged PCB connections, it supports an operating temperature from -55°C to +105°C and a current rating of 1.8A per pin. Its compact design with weld tabs ensures secure attachment, and it complies with RoHS and lead-free standards. Suitable for applications requiring reliable, high-performance electrical connections, it offers compatibility with standard mate components and precise coplanarity for optimal PCB layout integration.
SAMTEC ZF5S3003TWT High-Performance SMT Connector Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p! (1.27 um) Ni
- Weld Tab: Phosphor Bronze
- Operating Temp Range: -55°C to +105°C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm (0.004") max (10-30), 0.15 mm (0.006") max (40-50)
- Size Range: 1 to 10 positions, 0.50 mm pitch
- Compatibility: Mates with FH 0.50 mm series, suitable for rugged PCB connections
- Design Features: Weld tabs for secure attachment, high-density contact arrangement
Buy the Samtec Series ZF5S High-Performance Connector: ZF5S3003TWT
Order the Samtec ZF5S3003TWT connector online today for unmatched PCB connection reliability. Featuring natural LCP insulation, phosphor bronze contacts with Sn over Ni plating, and a compact design, this connector supports an operating temperature from -55°C to +105°C and a current of 1.8A per pin. Its weld tabs and precise coplanarity ensure secure, high-density mounting suitable for rugged applications. Compatible with standard mate series, it’s ideal for demanding electronic systems where durability and performance are essential.
Buy Samtec ZF5S3003TWT high-performance SMT connector now and experience reliable, secure PCB connections with excellent temperature and current ratings.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S3003TWT?
You can click on the BUY or RFQ button to purchase ZF5S3003TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S3003TWT?
You can download the ZF5S3003TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S3003TWT?
SAMTEC
