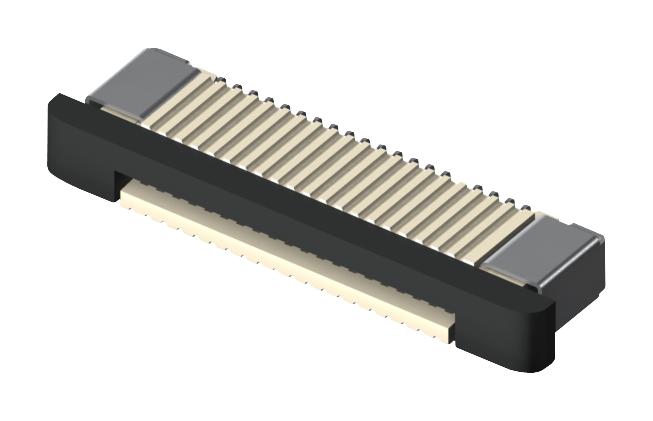

SAMTEC ZF5S4003TWT PCB Connector
This connector features natural LCP insulator material and phosphor bronze contacts with Sn over 50 p! Ni plating, designed for reliable PCB connections. Operating within -55°C to +105°C, it supports a current rating of 1.8 A per pin and is RoHS compliant and lead-free. The connector's rugged weld tab ensures secure board attachment, making it ideal for high-performance electronic assemblies requiring precision and durability. Suitable for multi-position configurations with single or multiple contact arrangements, this connector is essential in demanding electronic applications.
SAMTEC ZF5S4003TWT PCB Connector Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p! Ni (1.27 μm)
- Weld Tab: Phosphor Bronze
- Operating Temperature Range: -55 °C to +105 °C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Coplanarity: 0.10 mm (.004") max (10-30), 0.15 mm (.006") max (40-50)
- Application: Surface-mount, with rugged weld tabs for secure connection
- Number of Positions: Varies, commonly 1-4, with options for custom configurations
- Compatible With: FH (0.50 mm) pitch connectors
- Housing: Multi-position, high-reliability design
- Customer Requirements: Must be approved via specific drawings
- Note: Sizes, styles, and options may vary; some non-standard, non-returnable
Buy the Buy Samtec Connector Part Number ZF5S-40-01-T-WT Online
Purchase the Samtec PCB Connector ZF5S-40-01-T-WT online today to benefit from high-quality construction, RoHS compliance, and robust weld tabs ensuring durable, secure, and efficient electronic connections. Designed for high-performance applications, this connector supports operating temperatures from -55°C to +105°C and offers a current rating of 1.8 A per pin. Its natural LCP insulator and phosphor bronze contacts with tin over nickel plating ensure longevity, excellent electrical conductivity, and compatibility with surface-mount technology for reliable assembly.
Buy Samtec ZF5S-40-01-T-WT connector now and ensure reliable PCB connections with rugged weld tabs and high current capacity for demanding electronics.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S4003TWT?
You can click on the BUY or RFQ button to purchase ZF5S4003TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S4003TWT?
You can download the ZF5S4003TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S4003TWT?
SAMTEC
