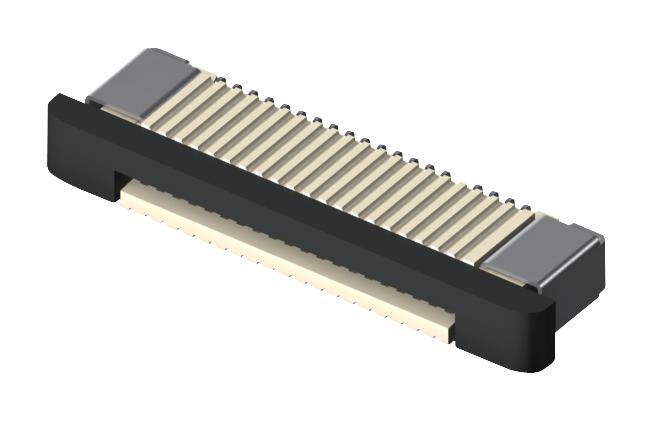

SAMTEC ZF5S4301TWT PCB Connector
The ZF5S-40-01-T-WT is a high-quality, RoHS-compliant connector featuring natural LCP insulation and phosphor bronze contacts with Sn over Ni plating. Designed for rugged PCB connections, it supports a current rating of 1.8 A per pin within a temperature range of -55°C to +105°C. Suitable for SMT applications, it offers excellent lead-free solderability and coplanarity for reliable assembly. Its versatile design includes weld tabs for secure mounting and compatibility with mating connectors like FH series, ensuring durability and performance in demanding electronic systems.
SAMTEC ZF5S4301TWT PCB Connector Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p!m Ni
- Weld Tab: Phosphor Bronze
- Operating Temp Range: -55 °C to +105 °C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm max for 10-30 positions, 0.15 mm max for 40-50 positions
- Mates with: FH (0.50 mm)
- Contact Top Position: Optional
- Number of Positions: varies, standard sizes include 10, 20, 40, 50
- Connection Type: Weld tabs for rugged connection to the PCB
Buy the Buy Samtec ZF5S-40-01-T-WT Part Number ZF5S-40-01-T-WT Online
Experience quality with the Samtec ZF5S-40-01-T-WT, a RoHS-compliant connector designed for robust PCB applications. Featuring natural LCP insulation and phosphor bronze contacts with Sn over Ni plating, it supports a current of 1.8 A per pin across a temperature range of -55°C to +105°C. Suitable for SMT assembly, it offers excellent coplanarity and lead-free solderability. Its weld tabs ensure secure mounting, making it ideal for demanding electronic systems requiring durable, reliable interconnections. Order online now for fast delivery.
Buy Samtec ZF5S-40-01-T-WT now and ensure reliable, durable PCB connections with excellent solderability and high current capacity.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S4301TWT?
You can click on the BUY or RFQ button to purchase ZF5S4301TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S4301TWT?
You can download the ZF5S4301TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S4301TWT?
SAMTEC
